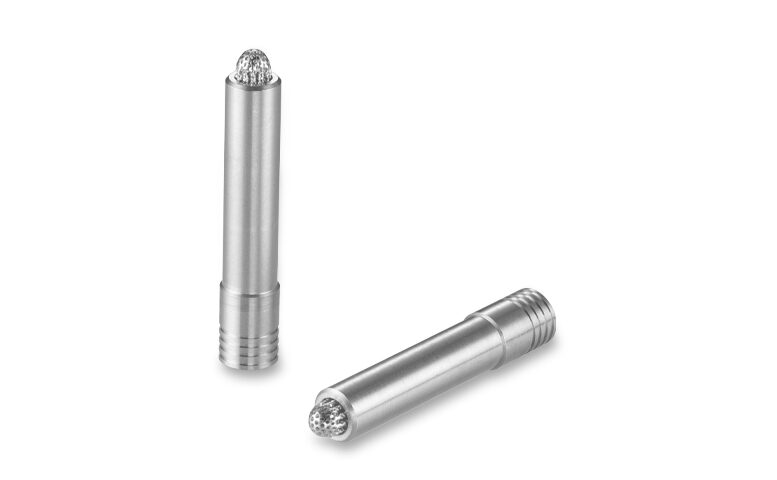

2500 Short Axial Visco Jet® Multi-Orifice Restrictor

This flow restrictor incorporates multiple spinner orifice discs in series to increase restriction or Lohm rate. Spinner discs reverse the direction of the fluid. The combined effect is an increase in the passage size for a given Lohm rate, making the restrictor more resistant to clogging due to contamination. Additionally, having the orifices in series make the restrictor less susceptible to cavitation. Rugged screens protect the orifice in both flow directions.

Key Product Facts
  • Type:Multi-Orifice
  • Diameter:0.25 inches
  • Metered Flow Range:2700 to 8200 Lohms
  • Test Fluid:Water
  • Operating Pressures:Up to 3000 psi

Product Information

General Performance
Characteristic Specification
Lohm Rate Tolerance ± 5%
Maximum Working Pressure 3000 psid
Nominal Weight 4.3 grams
Materials
PART MATERIAL SPECIFICATION
Body 303 CRES QQ-S-763C
Pin 303 CRES QQ-S-763C
Stack Retainer 303 CRES QQ-S-763C
Spacers 303 CRES QQ-S-763C
Shims 303 CRES QQ-S-763C
Spinner Discs 17-7PH CRES AMS 5528
Metering Discs 17-7PH CRES AMS 5529
Screens 304L CRES ASTM A 666
Base Washer 304L CRES ASTM A 666
Braze - AMS 4774
Finish: All CRES Parts Passivated
Pins are prewaxed. Do not degrease. Do not lubricate.

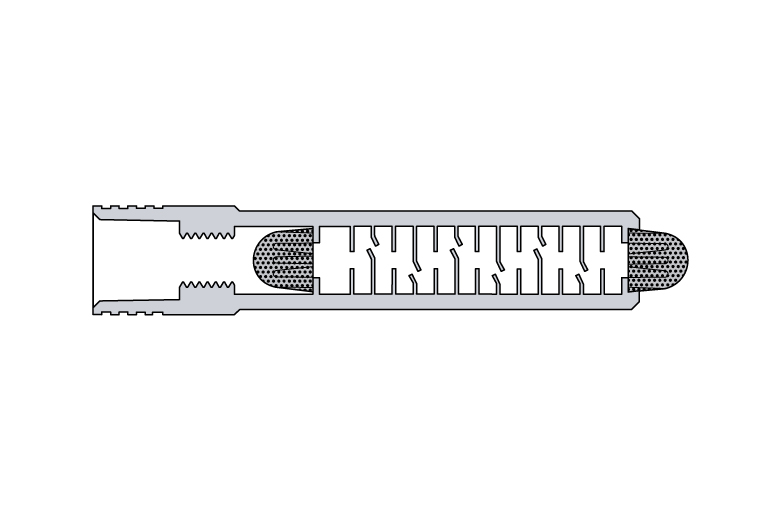

Cross Section View

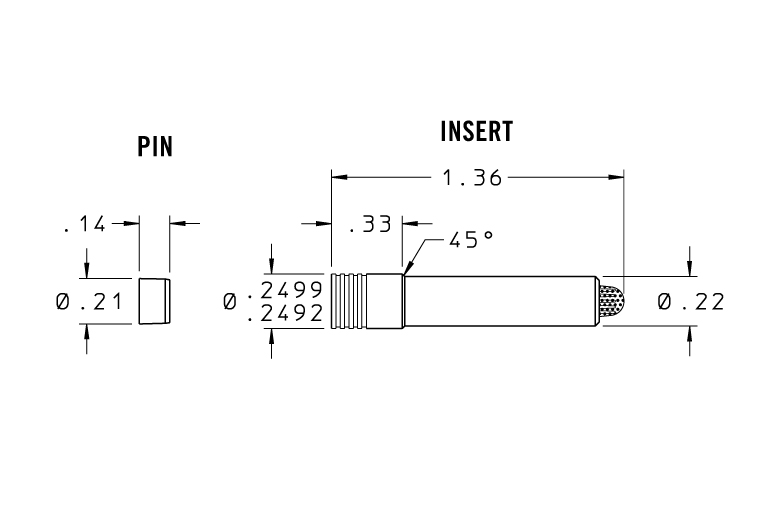

Dimensional View

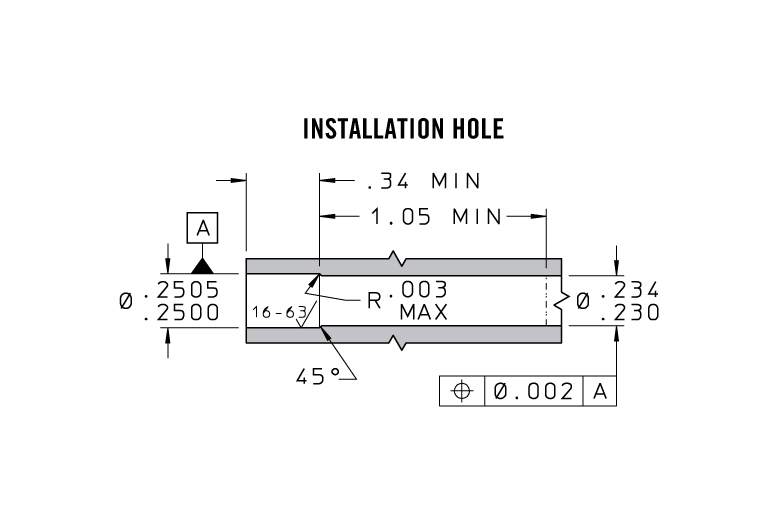

Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER LOHM RATE ± 5% Nominal Passage Size (in) NOMINAL SCREEN HOLE SIZE (in) Request Information
VXCA2500270D 2700 Lohms 0.035 0.015 Request
VXCA2500330D 3300 Lohms 0.035 0.015 Request
VXCA2500370D 3700 Lohms 0.035 0.015 Request
VXCA2500450D 4500 Lohms 0.03 0.015 Request
VXCA2500560D 5600 Lohms 0.025 0.015 Request
VXCA2500620D 6200 Lohms 0.025 0.015 Request
VXCA2500740D 7400 Lohms 0.02 0.015 Request
VXCA2500820D 8200 Lohms 0.02 0.015 Request

Installation & Accessories

Replacement Parts & Accessories
Part Number Description
CUTA2000113C Installation / Extraction Tool Set
VXCA2500003A Replacement Pin
