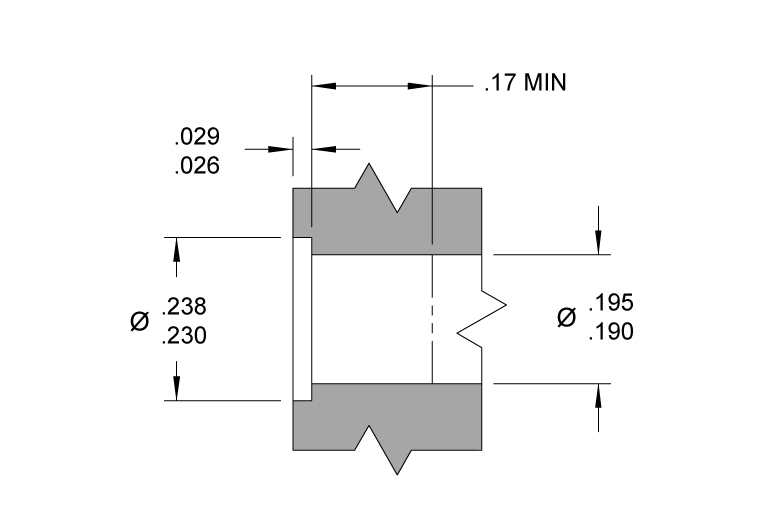

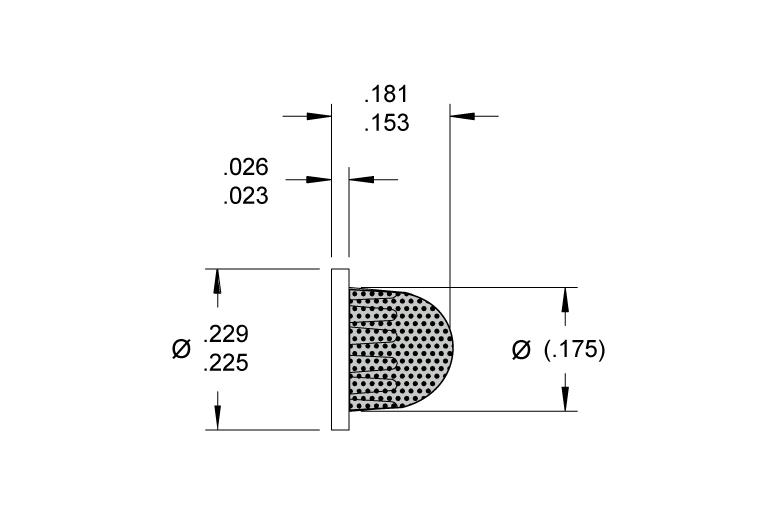

Lee Etched Safety Screens feature a seamless, one-piece screen element formed with pleats to greatly increase the dirt carrying capacity of the screen. The result is a robust screen design with an optimum amount of protection in a small package. Lee etched safety screens are offered with several standard hole sizes including 75, 100, 150, 200, 250, 380, and 500 microns. Lee Flange Mount Etched Safety Screens incorporate a simple, economical, flange mounting configuration and are available in eight flange sizes ranging from 0.130″ to 0.656″ in diameter.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

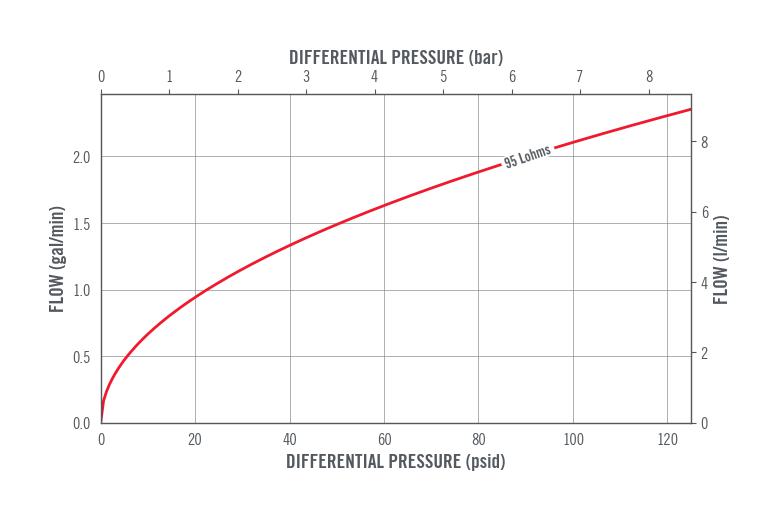

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
