Flow Restrictors

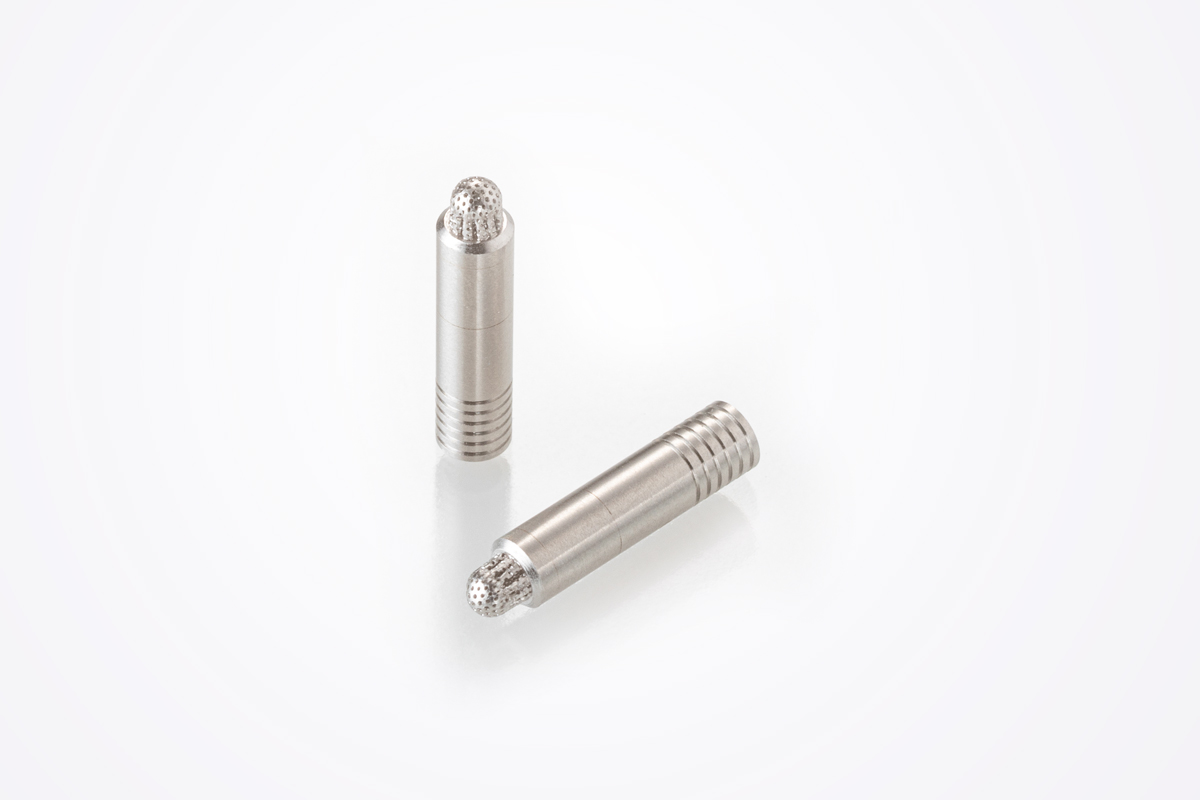

High Pressure 125 Multi-Orifice Visco Jet® Restrictor

This high pressure jet is a compact, multi-orifice flow restrictor that incorporates slots and spin chambers. The complex fluid passage provides a greater minimum passage for a given restriction and is better suited to handle much higher levels of contamination. Additionally, the fluid velocity is reduced by the series of restrictions, thus reducing the chances of cavitation. With robust screens protecting for bidirectional flow, the High Pressure 125 Multi-Orifice Visco Jet® Restrictor is available calibrated to ± 5% or ± 10% tolerance.

Contact a Lee Sales Engineer Go to Product Finder
Key Product Facts
  • Type:Multi-Orifice
  • Diameter:0.125 inches
  • Metered Flow Range:11,200 to 313,000 Lohms
  • Test Fluid:Water
  • Operating Pressures:Up to 8000 psi
For More Information

Product Information

General Performance
Characteristic Specification
Lohm Rate Tolerance ± 5% or ± 10%
Maximum Working Pressure 8000 psid
Nominal Weight 1.0 gram
Materials
PART MATERIAL SPECIFICATION
Body 304L CRES QQ-S-763
Pin 17-4PH CRES AMS 5643
Visco Stack 304L CRES ASTM A 666
Screens 304L CRES ASTM A 666
Base Washer 304L CRES ASTM A 666
Braze - AMS 4774 and AWS A5.8 BNi-6
Finish: All CRES Parts Passivated
Pins are prewaxed. Do not degrease. Do not lubricate.
Dimensional View
This image is for reference only. All dimensions are in inches.

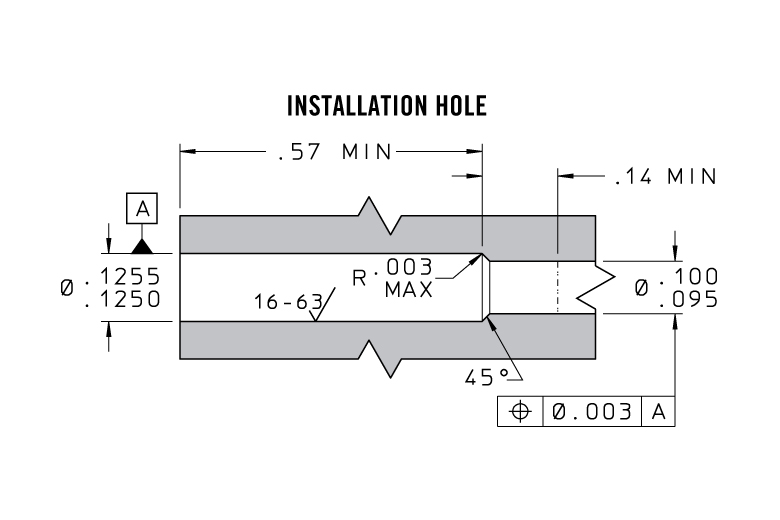

Installation Hole Details
This image is for reference only. All dimensions are in inches.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
Filter Part Numbers
Tolerance
PART NUMBER
Tolerance
LOHM RATE Minimum Passage Size (in) Total Screen Area (in2) Screen Open Area (in2) Screen Hole Size (in) Request Information
VHCA1245112H ± 5% 11,200 Lohms 0.015 0.028 0.007 0.006 Request
VHCA1245162H ± 5% 16,200 Lohms 0.015 0.028 0.007 0.006 Request
VHCA1235176H ± 5% 17,600 Lohms 0.01 0.028 0.01 0.006 Request
VHCA1235240H ± 5% 24,000 Lohms 0.01 0.028 0.01 0.006 Request
VHCA1235330H ± 5% 33,000 Lohms 0.01 0.028 0.01 0.006 Request
VHCA1235410H ± 5% 41,000 Lohms 0.01 0.028 0.01 0.006 Request
VHCA1225800H ± 5% 80,000 Lohms 0.007 0.028 0.009 0.004 Request
VHCA1215145K ± 5% 145,000 Lohms 0.005 0.028 0.009 0.004 Request
VHCA1215198K ± 5% 198,000 Lohms 0.005 0.028 0.009 0.004 Request
VHCA1215243K ± 5% 243,000 Lohms 0.005 0.028 0.009 0.004 Request
VHCA1215280K ± 5% 280,000 Lohms 0.005 0.028 0.009 0.004 Request
VHCA1215313K ± 5% 313,000 Lohms 0.005 0.028 0.009 0.004 Request
VHCA1240112H ± 10% 11,200 Lohms 0.015 0.028 0.007 0.006 Request
VHCA1240162H ± 10% 16,200 Lohms 0.015 0.028 0.007 0.006 Request
VHCA1230176H ± 10% 17,600 Lohms 0.01 0.028 0.01 0.006 Request
VHCA1230240H ± 10% 24,000 Lohms 0.01 0.028 0.01 0.006 Request
VHCA1230330H ± 10% 33,000 Lohms 0.01 0.028 0.01 0.006 Request
VHCA1230410H ± 10% 41,000 Lohms 0.01 0.028 0.01 0.006 Request
VHCA1220800H ± 10% 80,000 Lohms 0.007 0.028 0.009 0.004 Request
VHCA1210145K ± 10% 145,000 Lohms 0.005 0.028 0.009 0.004 Request
VHCA1210198K ± 10% 198,000 Lohms 0.005 0.028 0.009 0.004 Request
VHCA1210243K ± 10% 243,000 Lohms 0.005 0.028 0.009 0.004 Request
VHCA1210280K ± 10% 280,000 Lohms 0.005 0.028 0.009 0.004 Request
VHCA1210313K ± 10% 313,000 Lohms 0.005 0.028 0.009 0.004 Request
Clear Filters

Installation & Accessories

Replacement Parts & Accessories
Part Number Description
CUTA1250306C Installation / Extraction Tool Set

CAD Envelopes

Resources

Get in touch

Questions?

From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.

Please provide your information to access the content.

Thank You.

Your download has started.

Request Information for Part #

We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.

Thank you for your inquiry.

We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.

Lohms for Liquids Lohms for Gases
