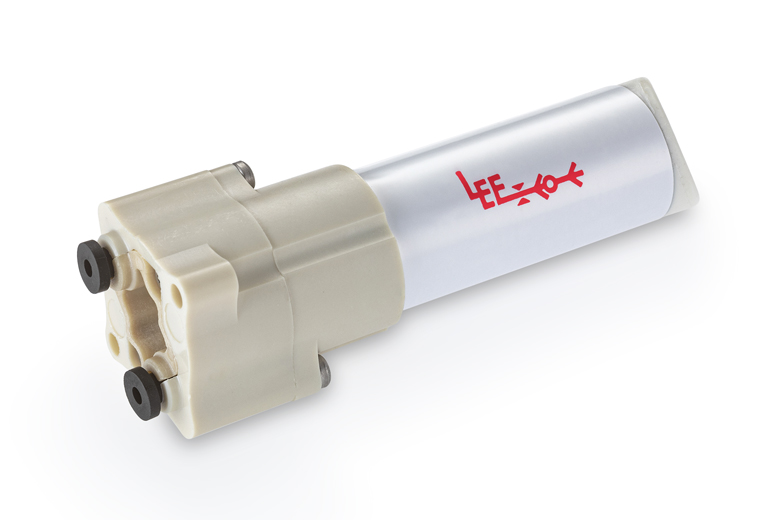

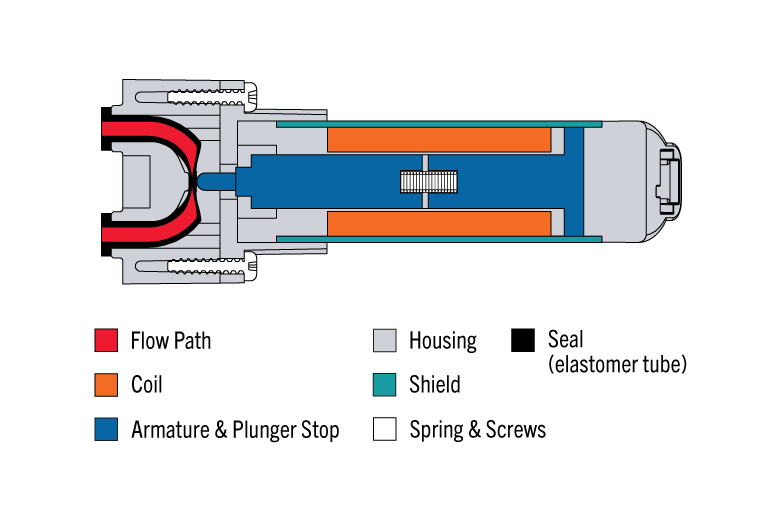

This normally closed, high flow, bidirectional pinch-tube isolation valve boasts only one wetted material (the tube) and zero dead volume. Its unique internal flow path is a full-bore tube, which minimizes damage to sensitive fluids and ensures maximum, rapid flushing. This internal tube is also integrated into the external port connections, thus eliminating the need for a secondary sealing gasket between the valve and mounting surface. Each valve is customizable and 100% tested to guarantee performance.
| Characteristic | Specification |
|---|---|
| Operating Pressure | 0 - 15 psig, 15 psid Max |
| Cycle Life* | 10 M Cycles Min |
| Recommended Filtration | 100 Microns or Finer |
| Response Time** | 30 ms Max |
| Operating Temperature*** | 40°F - 150°F (4°C - 65°C) |
| Max Coil Temperature*** | 180°F (82°C) |
| Storage Conditions | Temperature: -40°F to 175°F (-40°C to 80°C) Relative Humidity: 85% Max, Non-Condensing |
| Power | 3 W |
| Weight | 57 grams |
| Internal Volume | 100 µl |
| Configuration | Manifold Mount |
| Component | Material |
|---|---|
| Tube | FKM |

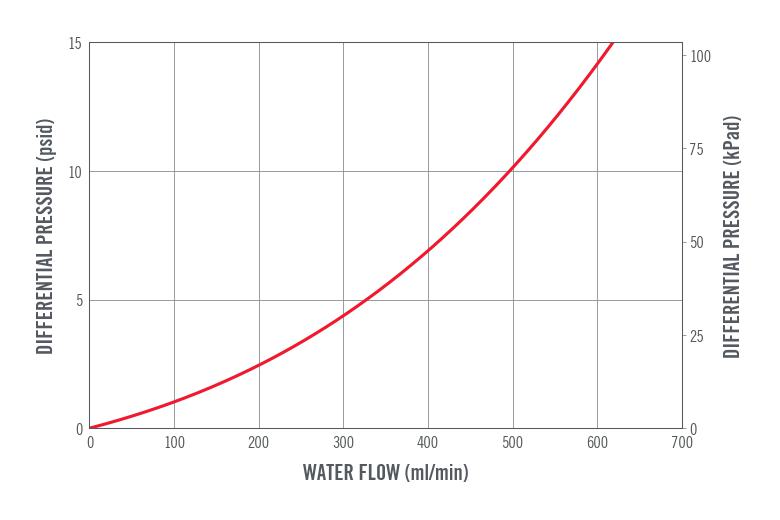

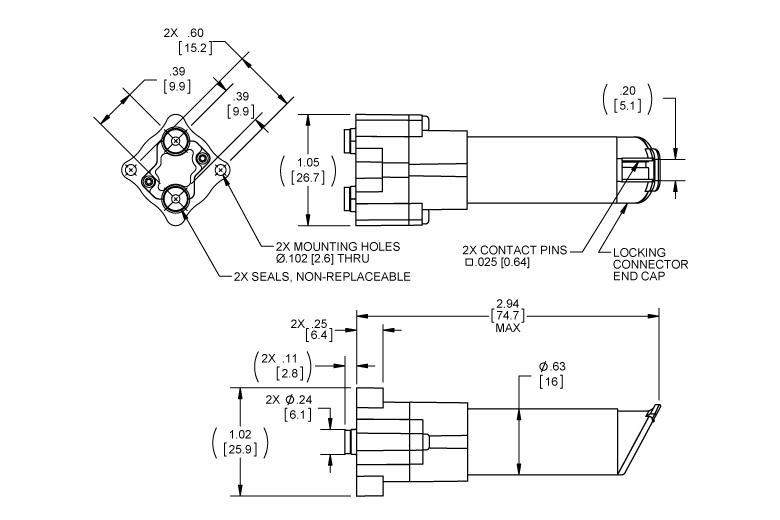

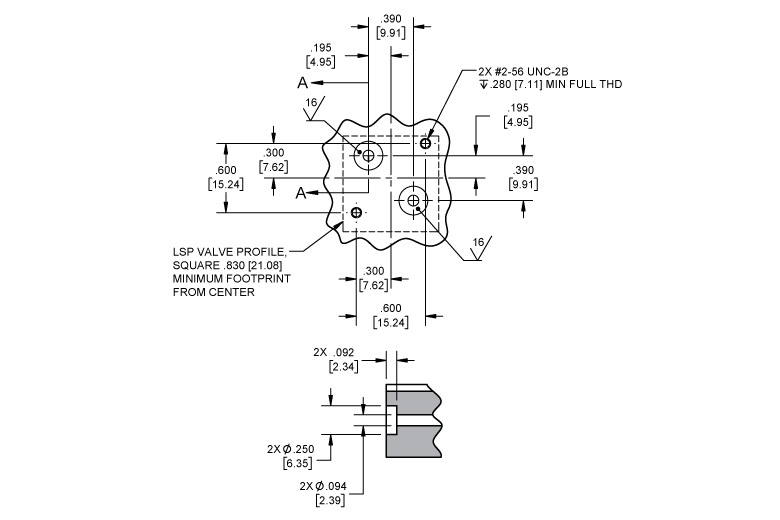

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| LSWX0504300A | Lead Wire Connector, 6" Long |
| LSWX0606700A | Lead Wire Connector, 24" Long |

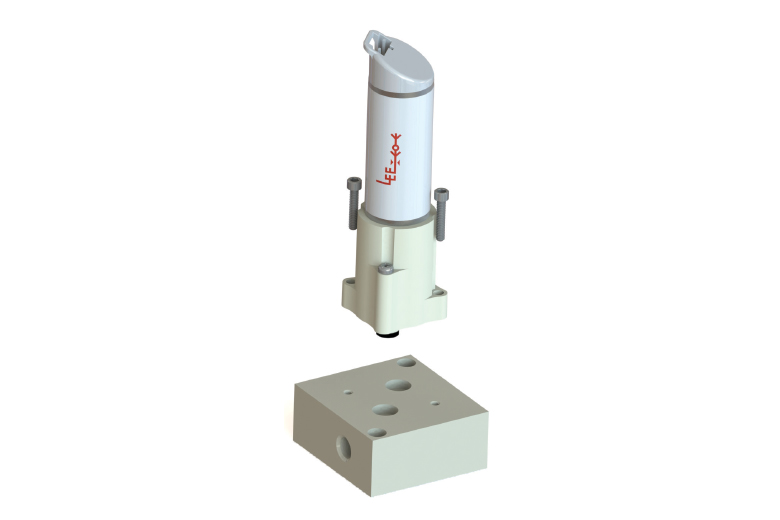

| LSMX0517560B | PEEK Manifold Adapter for Connection to ¼-28 Ports |
| LSMX0517570B | PMMA Manifold Adapter for Connection to ¼-28 Ports |
| LHWX0213420A | Screw, SHC, #2-56 x 0.438" Stainless Steel |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
