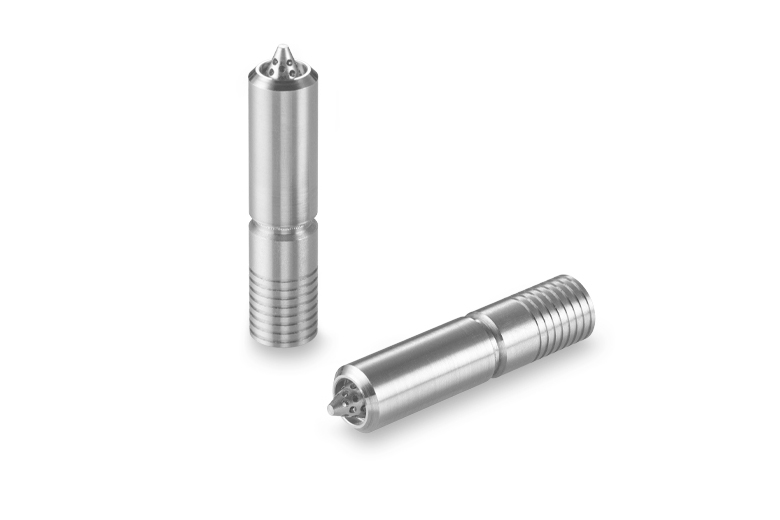

NACE Compliant High Pressure 250 H Bender Jet Multi-Orifice Restrictor

This NACE compliant jet is a high pressure, multi-orifice flow restrictor constructed entirely from MP35N, a nickel-cobalt-based alloy compliant with NACE MR0175/ISO15156. This restrictor is specifically designed to offer exceptional corrosion resistance and performance for harsh-duty applications found in the oil and gas industries. This component includes the advantages of a multi-orifice configuration, including reductions in clogging and the potential for cavitation.

Key Product Facts
  • Type:Multi-Orifice
  • Diameter:0.25 inches
  • Metered Flow Range:600 to 1800 Lohms
  • Test Fluid:Water
  • Operating Pressures:Up to 5000 psi

Product Information

General Performance
Characteristic Specification
Lohm Rate Tolerance ± 5%
Maximum Working Pressure 5000 psid
Nominal Weight 4.5 grams
Materials
PART MATERIAL
Locking End MP35N
Pin MP35N
Metering Element MP35N
Body MP35N
Screen MP35N
Finish: Pins are prewaxed. Do not degrease. Do not lubricate.

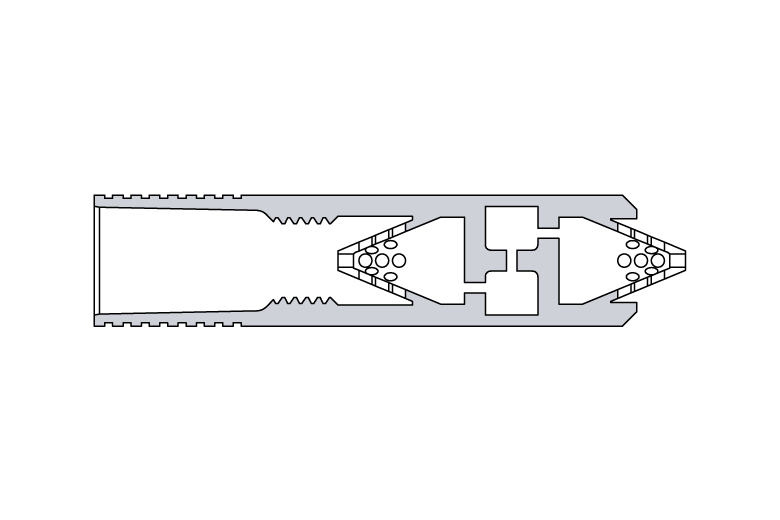

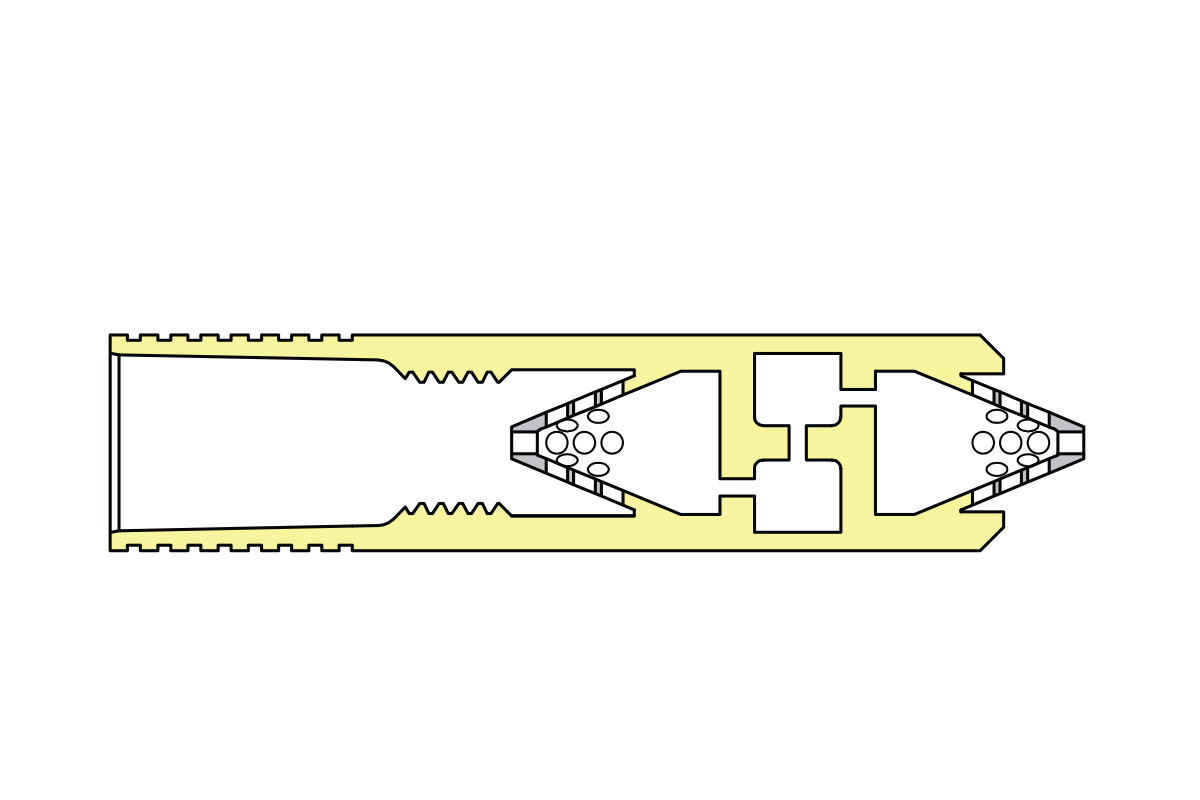

Cross Section View

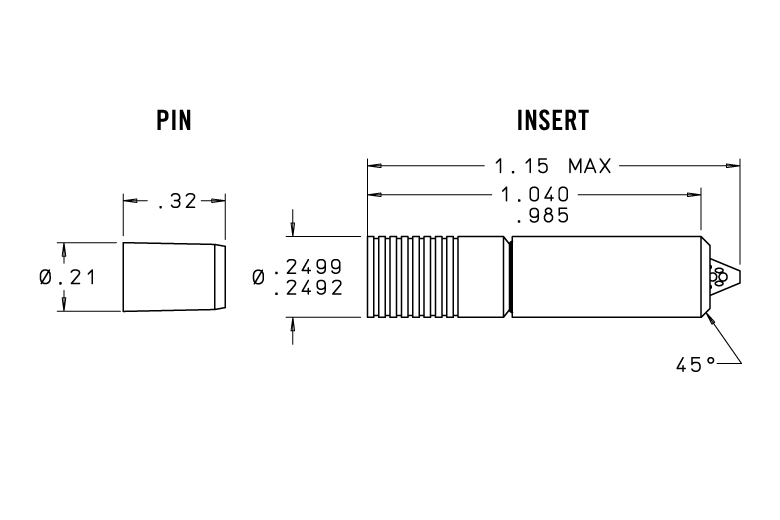

Dimensional View

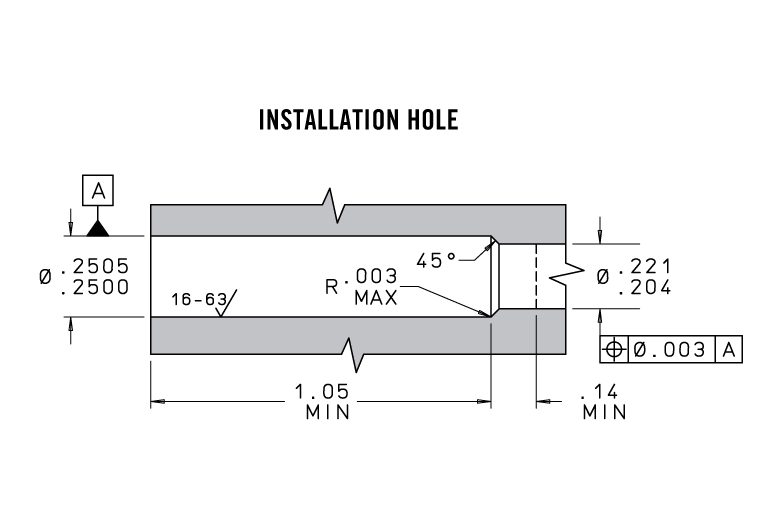

Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER LOHM RATE ± 5% MINIMUM PASSAGE SIZE (in) NOMINAL SCREEN HOLE SIZE (in) Request Information
JHBA2501600L 600 Lohms 0.05 0.024 Request
JHBA2501650L 650 Lohms 0.048 0.024 Request
JHBA2501700L 700 Lohms 0.046 0.024 Request
JHBA2501750L 750 Lohms 0.044 0.024 Request
JHBA2501800L 800 Lohms 0.042 0.02 Request
JHBA2501850L 850 Lohms 0.04 0.02 Request
JHBA2501900L 900 Lohms 0.039 0.02 Request
JHBA2501950L 950 Lohms 0.037 0.02 Request
JHBA2501100D 1000 Lohms 0.036 0.02 Request
JHBA2501110D 1100 Lohms 0.035 0.015 Request
JHBA2501120D 1200 Lohms 0.033 0.015 Request
JHBA2501130D 1300 Lohms 0.032 0.015 Request
JHBA2501140D 1400 Lohms 0.031 0.015 Request
JHBA2501150D 1500 Lohms 0.03 0.015 Request
JHBA2501160D 1600 Lohms 0.029 0.015 Request
JHBA2501170D 1700 Lohms 0.027 0.015 Request
JHBA2501180D 1800 Lohms 0.026 0.015 Request

Installation & Accessories

Replacement Parts & Accessories
Part Number Description
CUTA2500406C Installation / Extraction Tool Set
JHBA2501010B Replacement Pin
