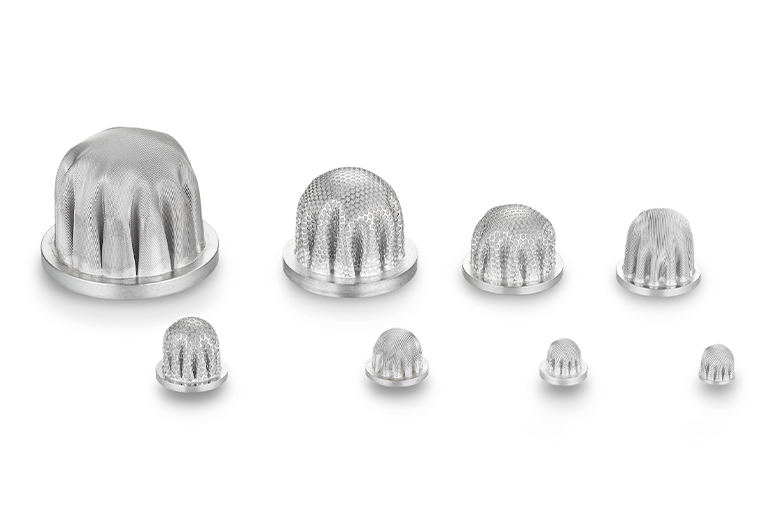

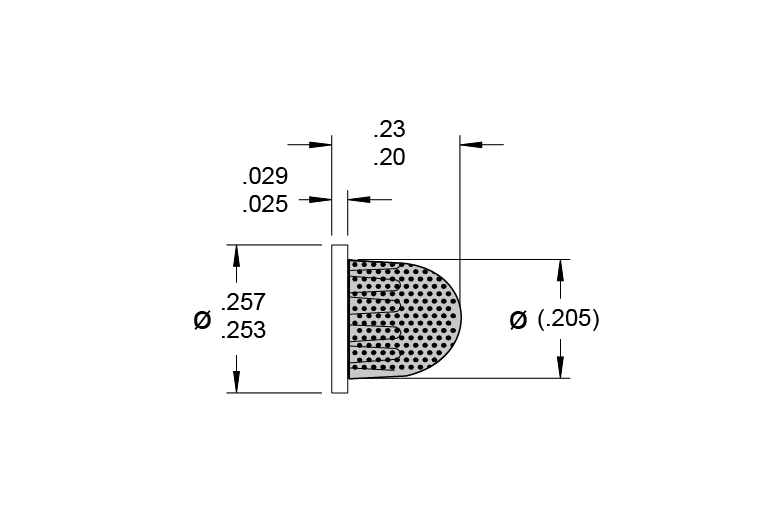

Lee Series 10 and 20 Safety Screens offer 10 and 20 micron hole sizes, respectively, in a compact, flange mount design. These robust screens incorporate a rugged, calendered, and sintered 316L stainless steel wire mesh weave for maximum strength. Manufactured using a proprietary process, Lee Series 10 and 20 screens feature a seamless design containing radial convolutions that greatly increase the contamination carrying capacity of the screen. The result is a high strength screen with an optimum amount of protection, in a small package.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

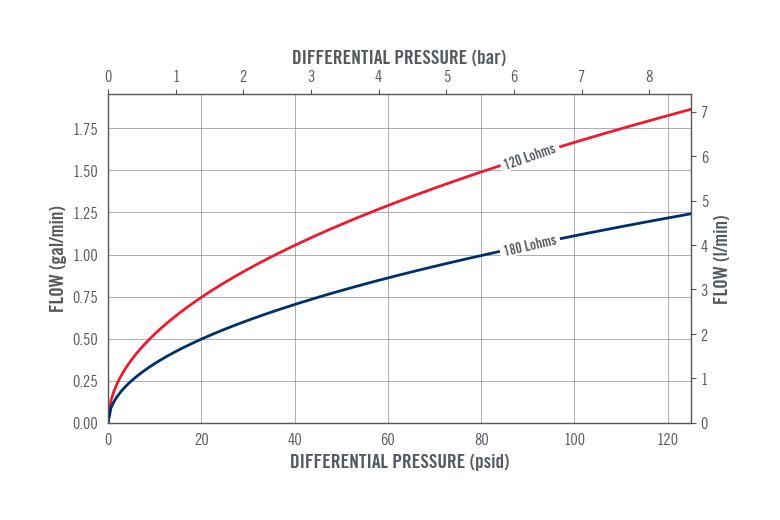

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
