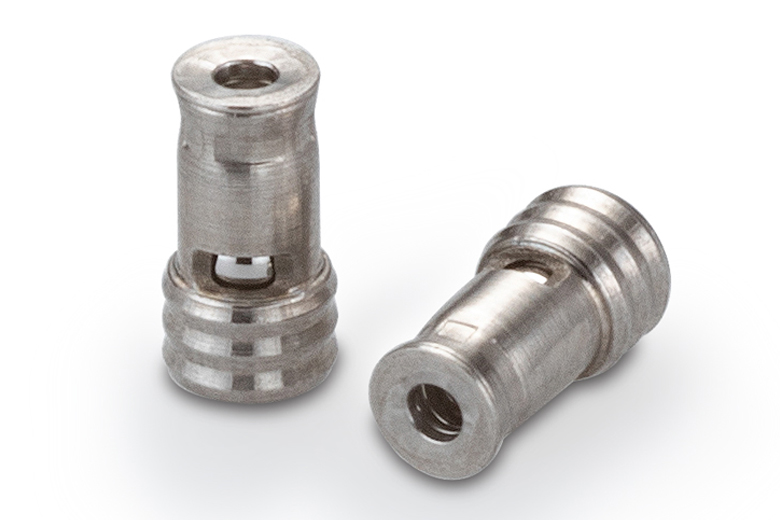

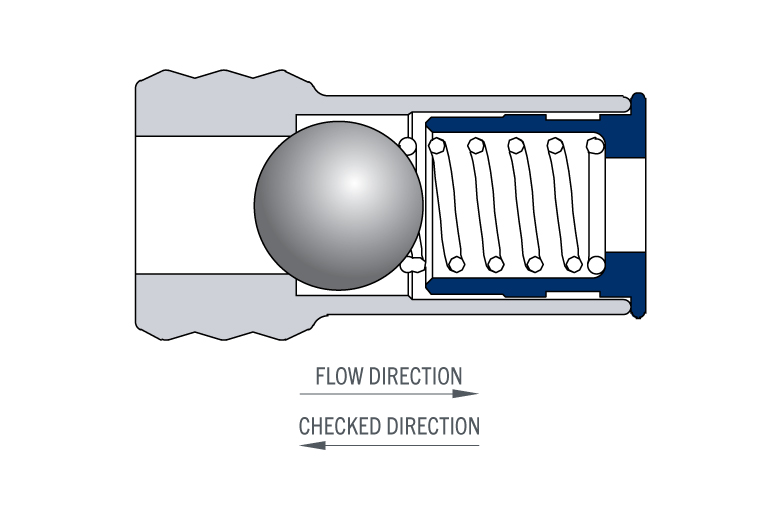

This cartridge-style, non-return valve is designed specifically for installation into many common medical fittings and plastic housings. The valve can be installed in either direction, providing forward or reverse flow capabilities. The valve features all stainless steel construction which provides compatibility with a wide range of fluids and gases. In addition, it is available with a ceramic ball for improved corrosion resistance. A high quality metal seat provides low leakage, repeatable cracking pressure, and long life. The valve is 100% functionally tested to ensure performance.
| Characteristic | Specification |
|---|---|
| Lohm Rate | 750 Lohms |
| Leakage | 10 SCCM (max) at 500 kPa (72.5 psid) on Air |
| Maximum Working Pressure | Dependent on Housing Material, Configuration, and Operating Conditions |
| COMPONENT | MATERIAL |
|---|---|
| Body | 303 Stainless Steel |
| Stop | 303 Stainless Steel |
| Spring | 302 Stainless Steel |
| Ball | 440C Stainless Steel or Ceramic |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CCRT0024277S | 2.5 mm Press-In Forward Installation Tool |
| CCRT0048048S | 2.5 mm Press-In Reverse Installation Tool |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
