Flow Restrictors

5.5 mm Insert Air Bleed Orifice Restrictor

This flow restrictor is a novel solution to removing trapped air in hydraulic systems while keeping hydraulic losses to a minimum. Utilizing a small precision flow orifice, the 5.5 mm Insert Air Bleed Orifice Restrictor allows trapped air to escape but is small enough to restrict most hydraulic flow, minimizing system losses. It features an integrated safety screen for contamination protection and uses The Lee Company’s field-proven insert principle that provides secure retention without the need for threads, O-rings, or sealants.

Key Product Facts
  • Mounting Configuration:Insert - Into Metal
  • Diameter:5.46 mm
  • Metered Flow Range:100,000 - 180,000 Lohms
  • Test Fluid:Clean & Dry Nitrogen
  • Maximum Working Pressure:21 MPa

Product Information

General Performance
Characteristic Specification
Lohm Rate Tolerance ± 10%
Test Fluid Clean and Dry Nitrogen
Maximum Working Pressure 21 MPa
Designed for Installation Into Metals, Such as Aluminum, Brass, Cast Iron, Stainless Steel, and Steel
Materials
COMPONENT MATERIAL
Body 303 Stainless Steel
Pin, Unscreened 416 Stainless Steel
Pin, Screened 303 Stainless Steel
Screen 316 Stainless Steel
Screen Body 305 Stainless Steel

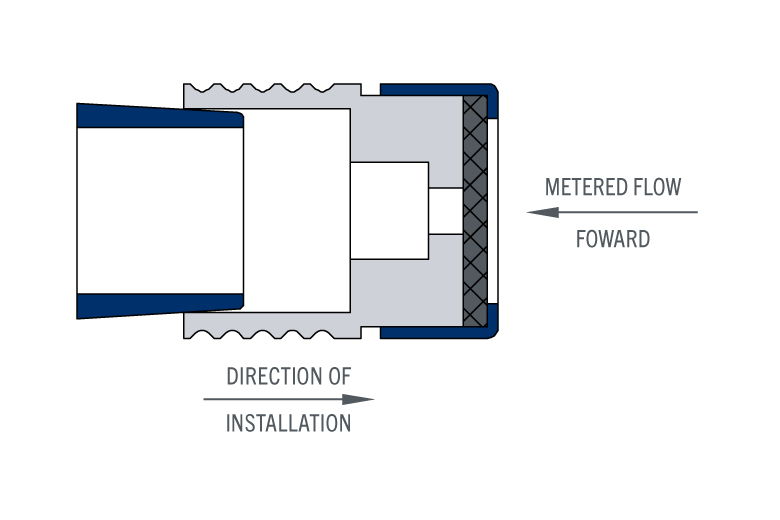

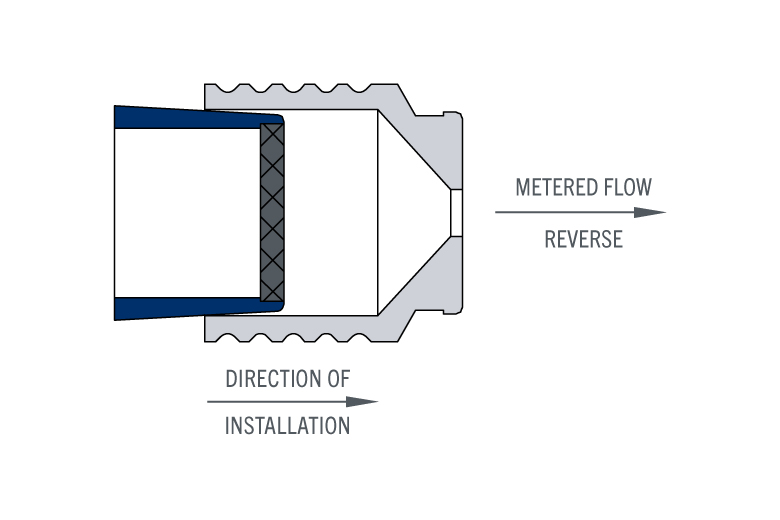

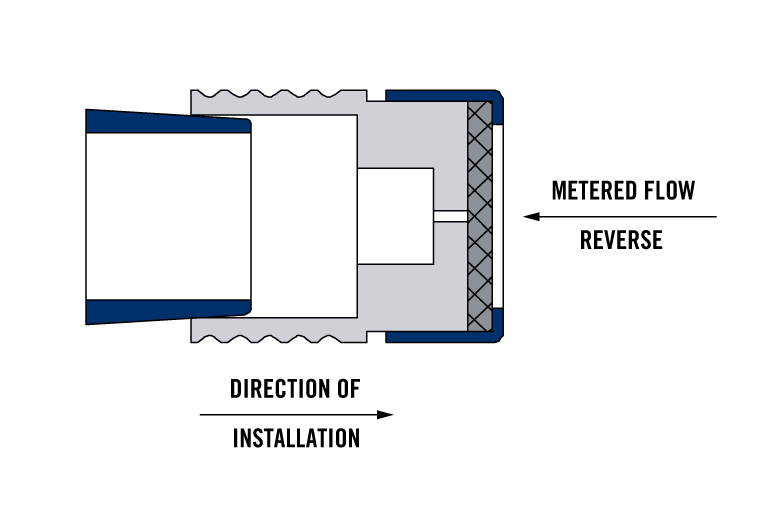

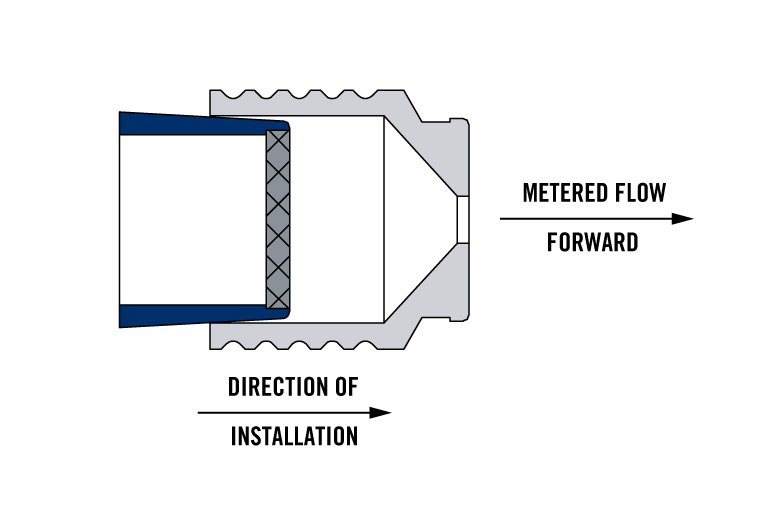

Cross Section Views

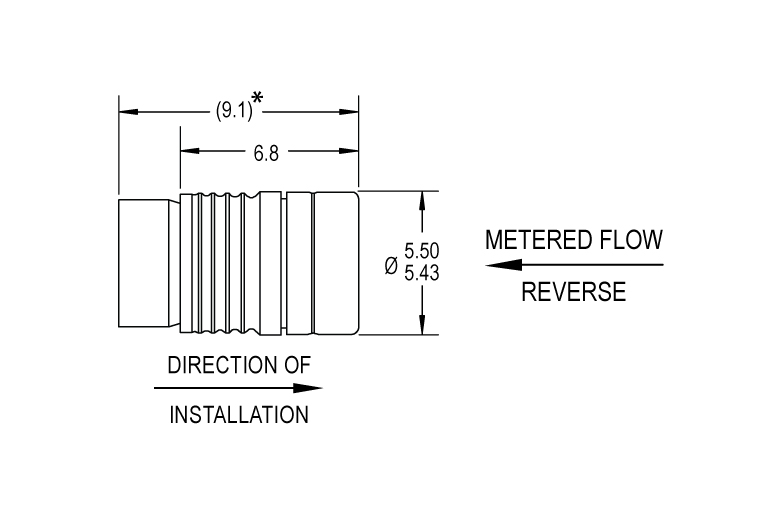

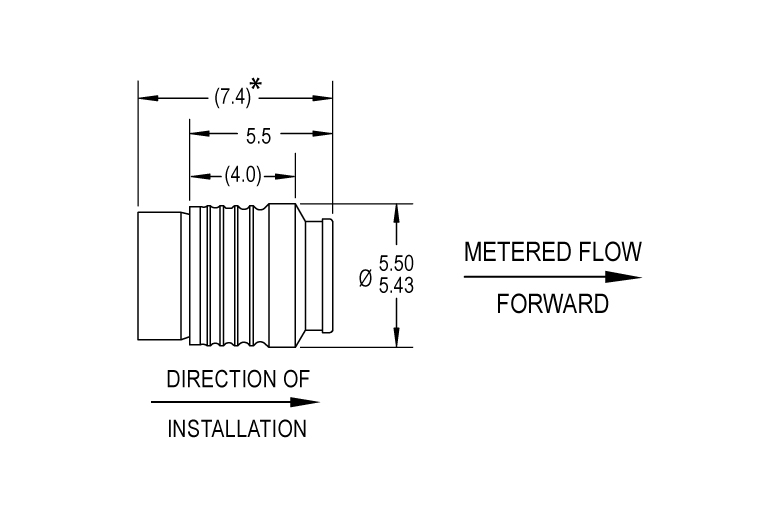

Dimensional Views

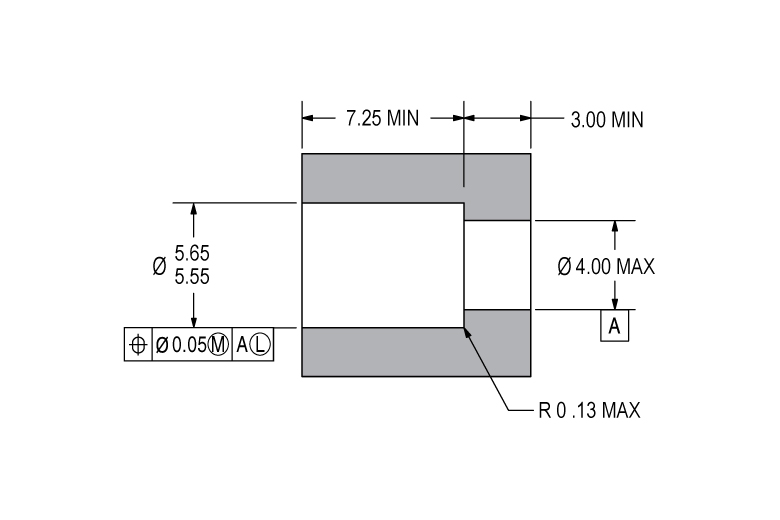

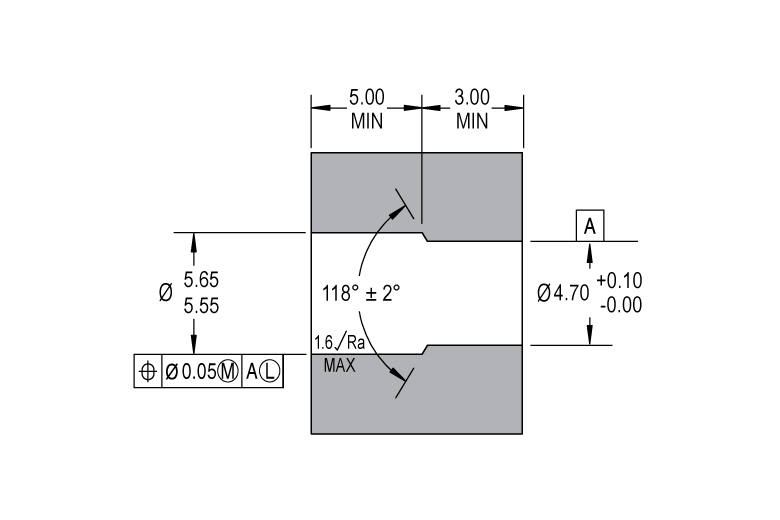

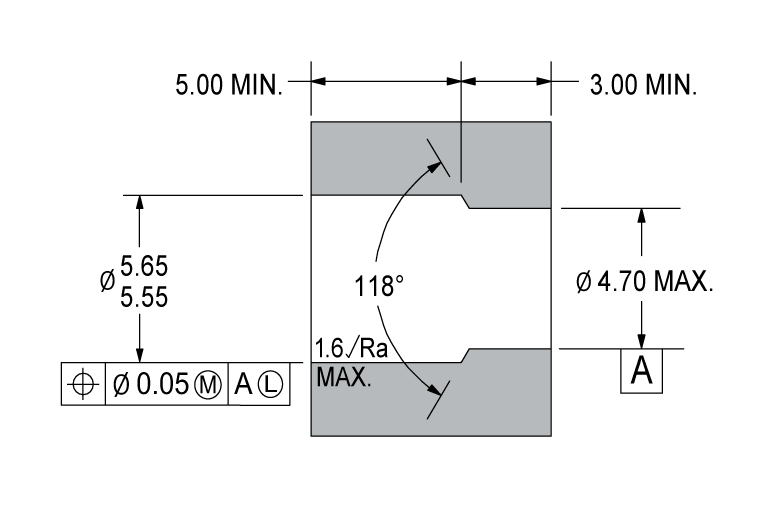

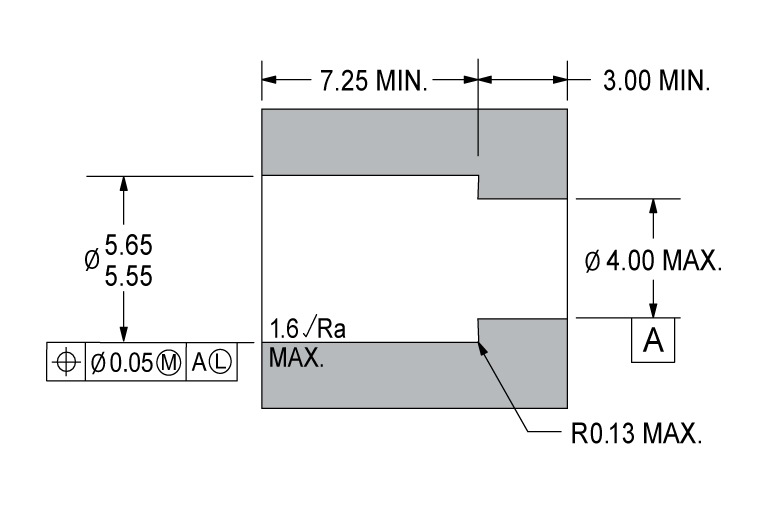

Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER FLOW DIRECTION LOHM RATE SCREEN MICRON RATING APPROXIMATE WEIGHT (g) INSTALLATION HOLE DRAWING NUMBER Request Information
RHGF4030100S Forward 100,000 Lohms 25 microns 0.63 1INST013800S Request
RHGF4030180S Forward 180,000 Lohms 25 microns 0.63 1INST013800S Request
RHGR4030100S Reverse 100,000 Lohms 25 microns 0.8 1INST067426S Request
RHGR4030180S Reverse 180,000 Lohms 25 microns 0.8 1INST067426S Request

Installation & Accessories

Installation & Manufacturing Tools
Replacement Parts & Accessories
PART NUMBER DESCRIPTION
CCRT0900120S 5.5 mm Insert Orifice Installation Tool
