Flow Restrictors

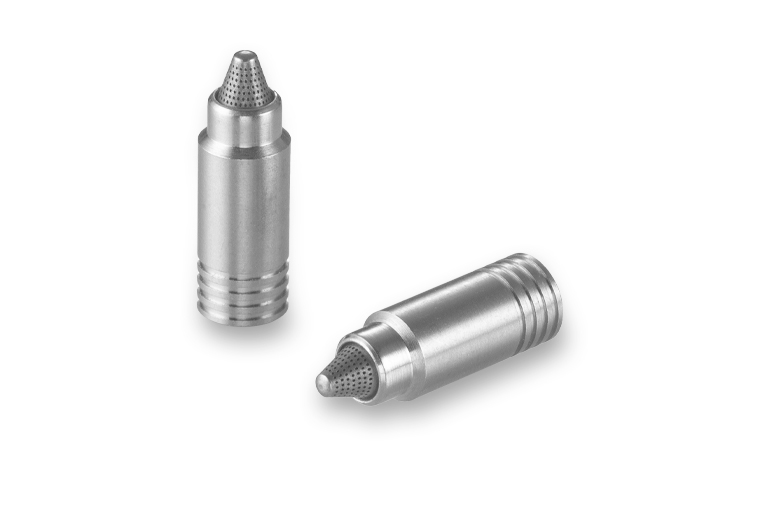

5K Lee Jet® Single-Orifice Restrictor

This single-orifice flow restrictor is suitable for working pressure differentials up to 5000 psi. Its robust design is manufactured entirely from stainless steel and incorporates a high strength locking end and drilled HI-BAR® safety screens, enabling the restrictor to handle higher pressures. The 5K Lee Jet® Single-Orifice Restrictor is 100% bidirectionally flow tested to a ± 2% or ± 5% flow tolerance. This flow restrictor is available in a wide range of Lohm rates.

Contact a Lee Sales Engineer Go to Product Finder
Key Product Facts
  • Type:Single-Orifice
  • Diameter:0.187 inches
  • Metered Flow Range:1000 to 20,000 Lohms
  • Test Fluid:Water
  • Operating Pressures:Up to 5000 psi
For More Information

Product Information

General Performance
Characteristic Specification
Lohm Rate Tolerance ± 2% or ± 5%
Maximum Working Pressure 5000 psid
Nominal Weight 1.1 grams
Materials
PART MATERIAL SPECIFICATION
Body 304L CRES QQ-S-763
Pin 15-5PH CRES AMS 5659
Screen 15-5PH CRES AMS 5659 or 5862
Finish: All CRES Parts Passivated
Pins are prewaxed. Do not degrease. Do not lubricate.

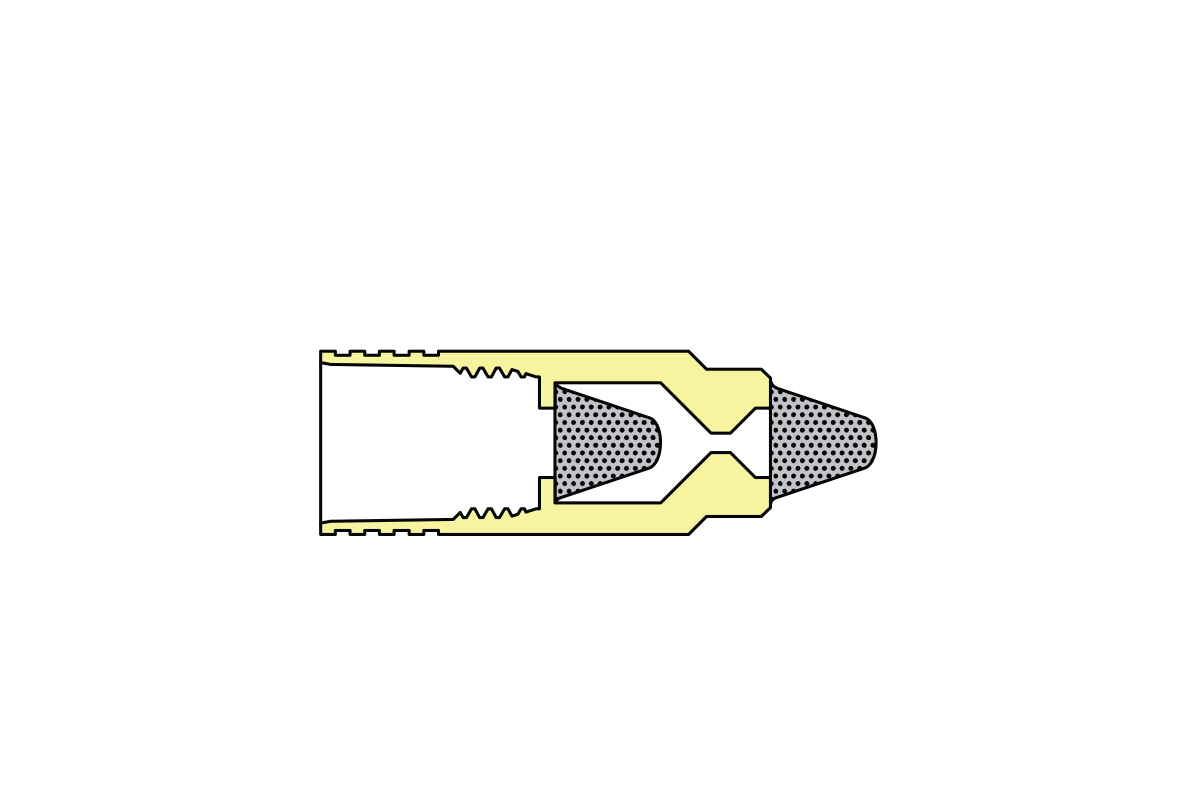

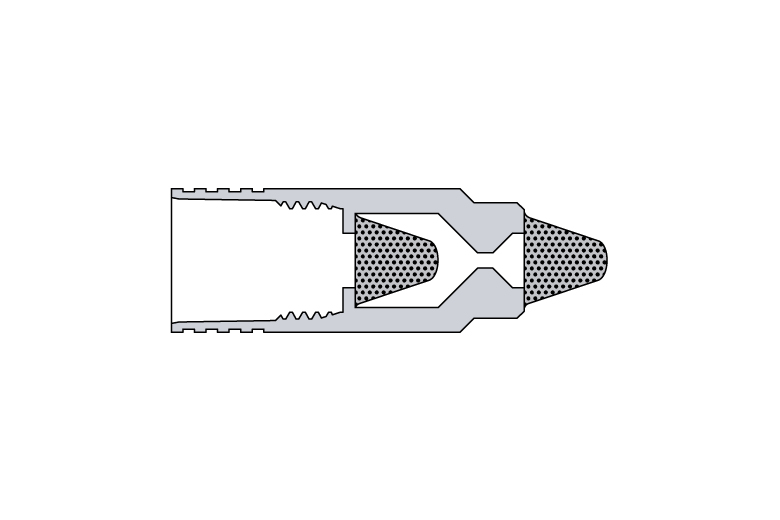

Cross Section View

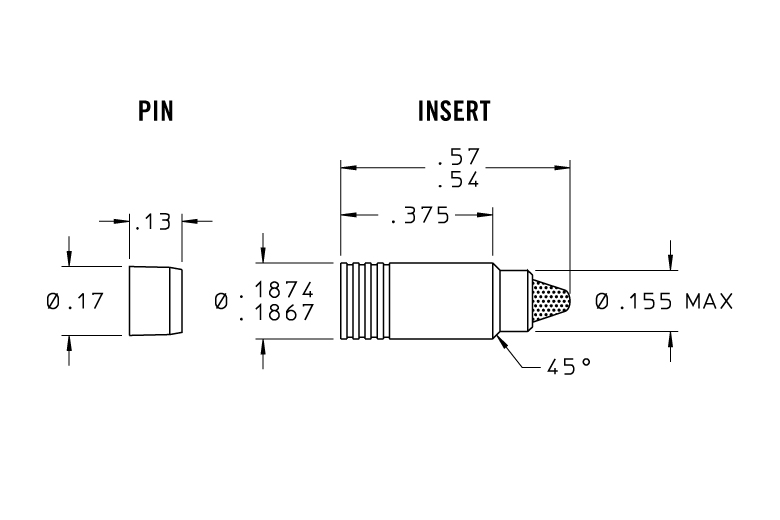

Dimensional View
This image is for reference only. All dimensions are in inches.

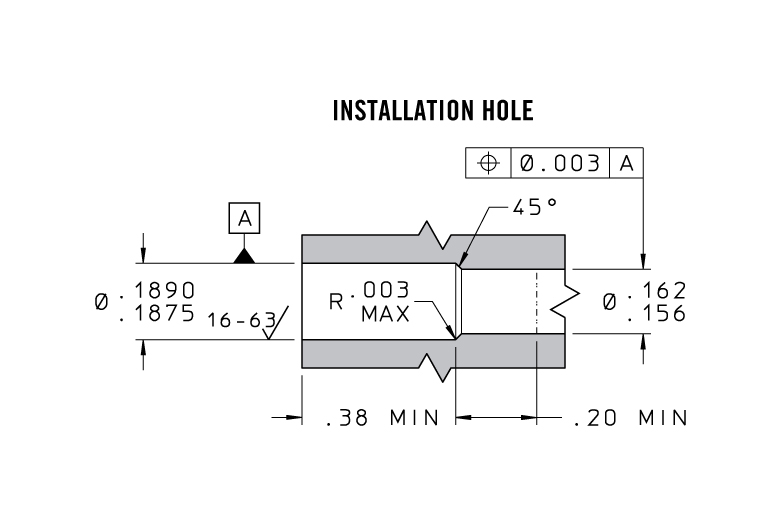

Installation Hole Details
This image is for reference only. All dimensions are in inches.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
