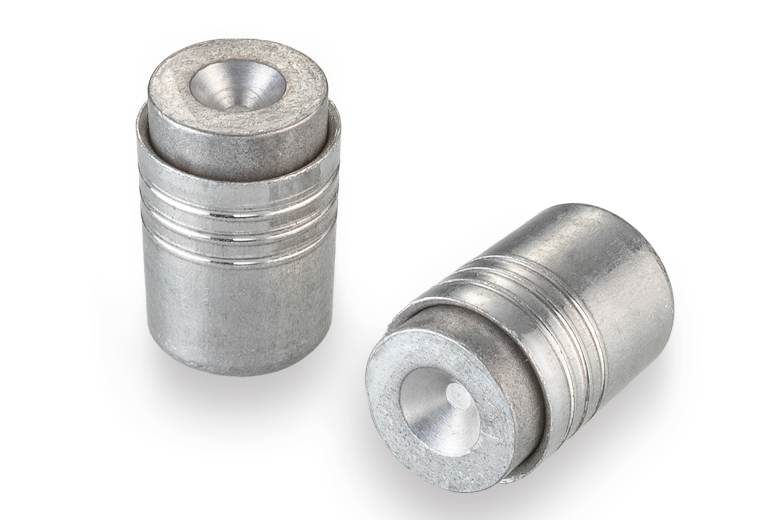

This pre-assembled aluminum tapered expansion plug is engineered to seal fluid passages in metal castings, creating a leak-tight seal without the use of threads, O-rings, or sealants. Its unique tapered design eliminates the need for tight manufacturing tolerances and allows designers to minimize the wall thickness around the plug, even for brittle housing materials. The pre-assembled plug facilitates a reliable automated or manual installation process. It is ideal for high volume applications.
| Characteristic | Specification |
|---|---|
| Rated Pressure* | 35 bar |

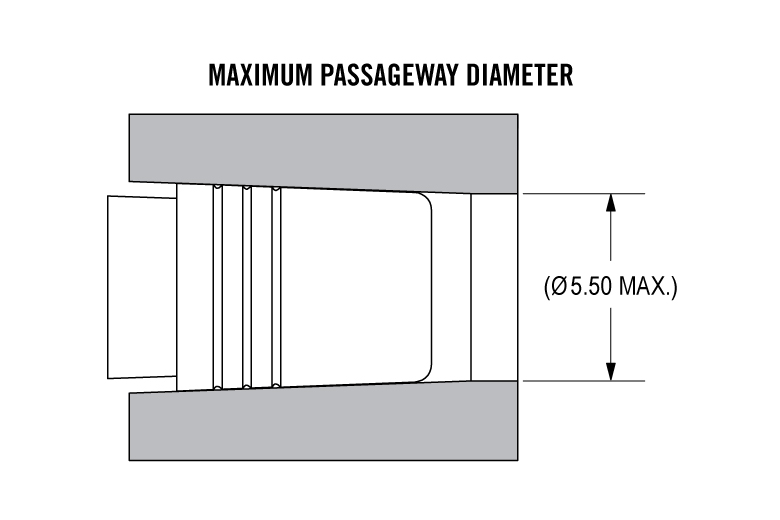

| Maximum Sealable Passageway Diameter | 5.50 mm |
| Maximum Temperature Rating | 135°C |
| Typical Installation Force in Aluminun | 4.9 kN |
| Acceptable Housing Materials | Aluminum, Cast Iron, Stainless Steel, and Steel |
| COMPONENT | MATERIAL |
|---|---|
| Pin | 6061 Aluminum |
| Plug | 6061 Aluminum |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
