8 mm Insert Single Orifice Restrictor for Gases
8 mm Insert Single Orifice Restrictor for Gases
Flow Restrictors

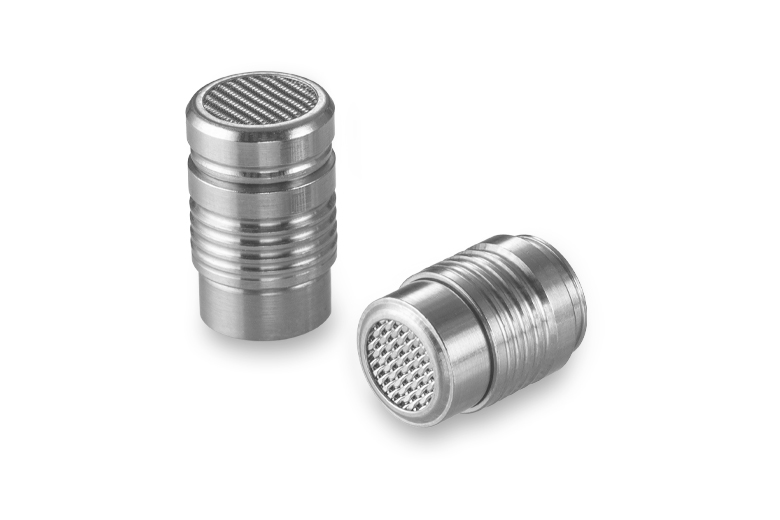

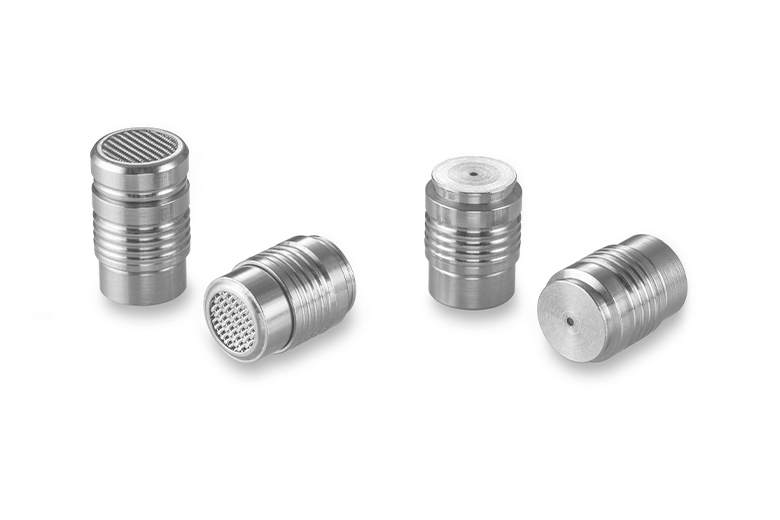

8 mm Insert Single-Orifice Restrictor for Gases

This highly accurate flow restrictor is self-retained, threadless, and reliable. The orifice is designed for installation into metal housings and is 100% flow tested on nitrogen to ensure that every part is within ± 5% of its nominal flow rate. Tighter tolerances are available as custom configurations. To increase accuracy, the orifice is tested in the direction of use. An integral safety screen is incorporated for configurations with an orifice diameter of 0.5 mm (0.020 of an inch) or below. This restrictor is constructed entirely of stainless steel.

Contact a Lee Sales Engineer Go to Product Finder
Key Product Facts
  • Mounting Configuration:Insert - Into Metal
  • Diameter:7.95 mm
  • Metered Flow Range:500 - 45,000 Lohms
  • Test Fluid:Clean & Dry Nitrogen
  • Maximum Working Pressure:21 MPa
For More Information

Product Information

General Performance
Characteristic Specification
Lohm Rate Tolerance ± 5%
Test Fluid Clean & Dry Nitrogen
Maximum Working Pressure 21 MPa
Designed for Installation Into Metals, Such as Aluminum, Brass, Cast Iron, Stainless Steel, and Steel
Materials
COMPONENT MATERIAL
Body 303 Stainless Steel
Pin, Unscreened 416 Stainless Steel
Pin, Screened 303 Stainless Steel
Screen 316 Stainless Steel
Screen Body 303 Stainless Steel

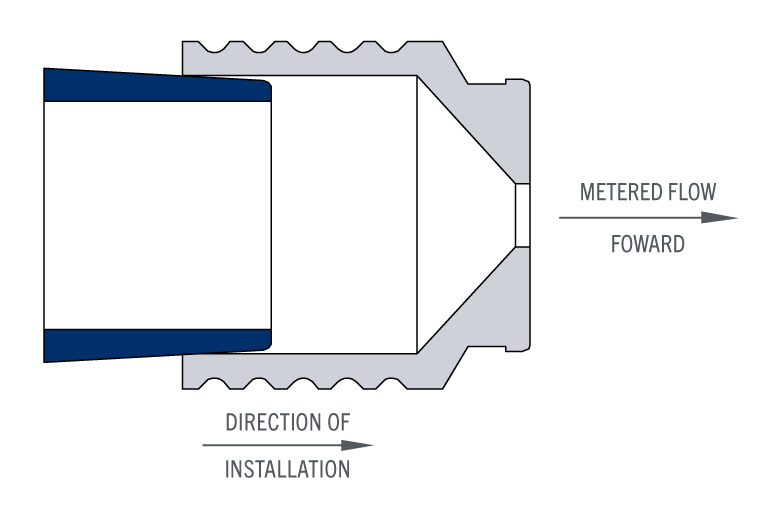

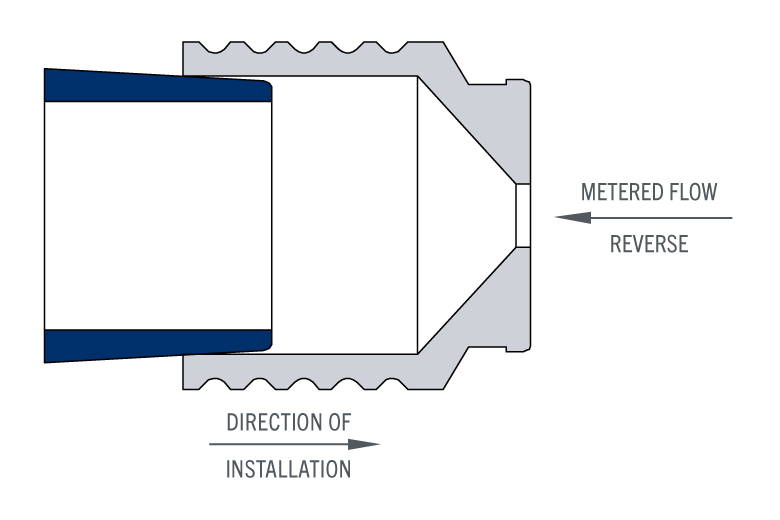

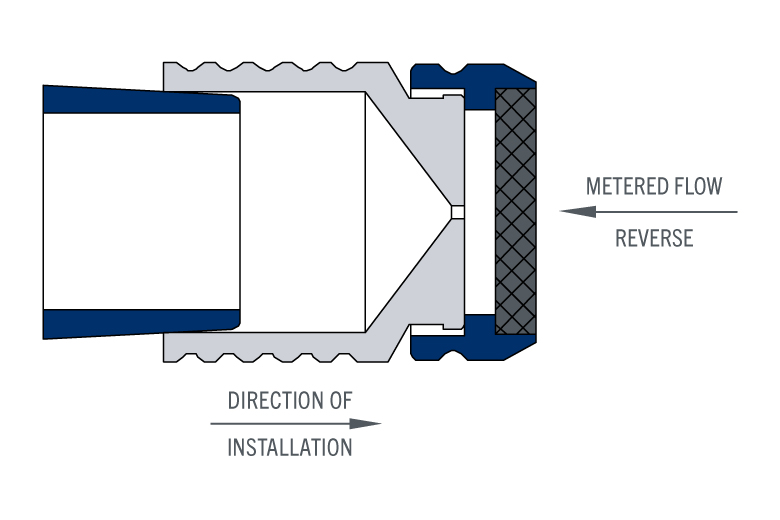

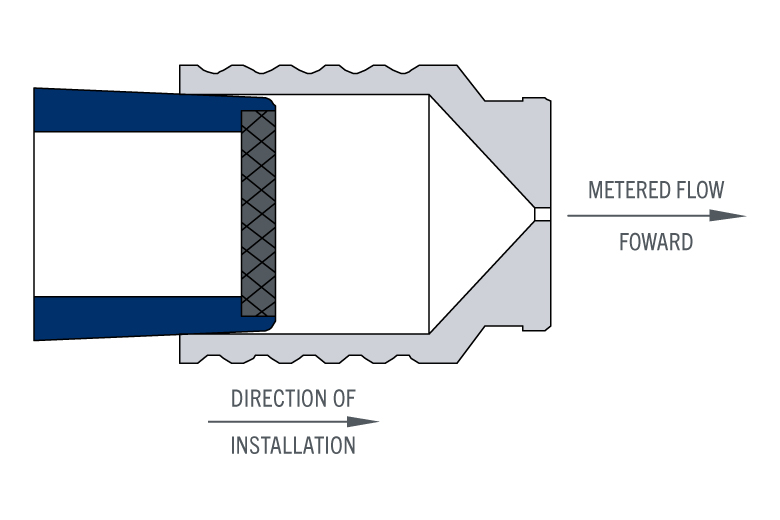

Cross Section Views
Unscreened Metered Flow Forward Configuration

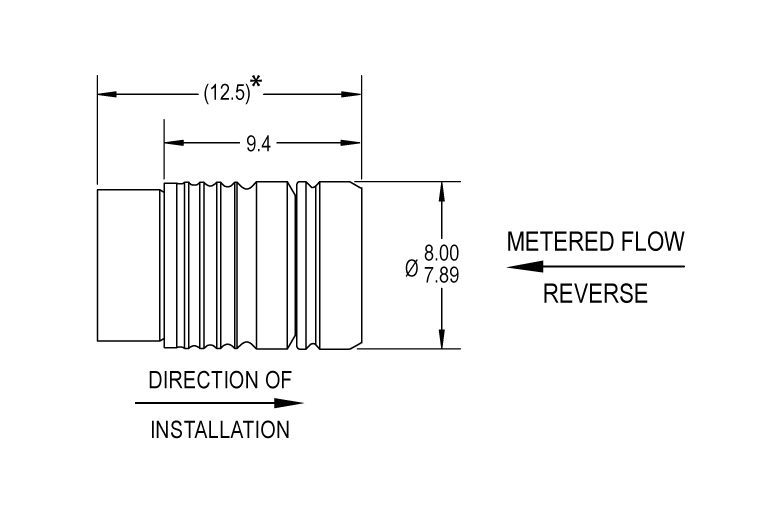

Dimensional Views

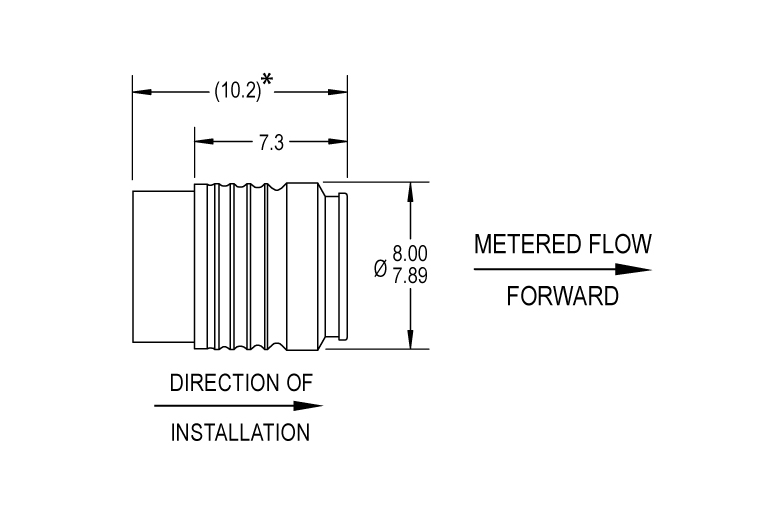

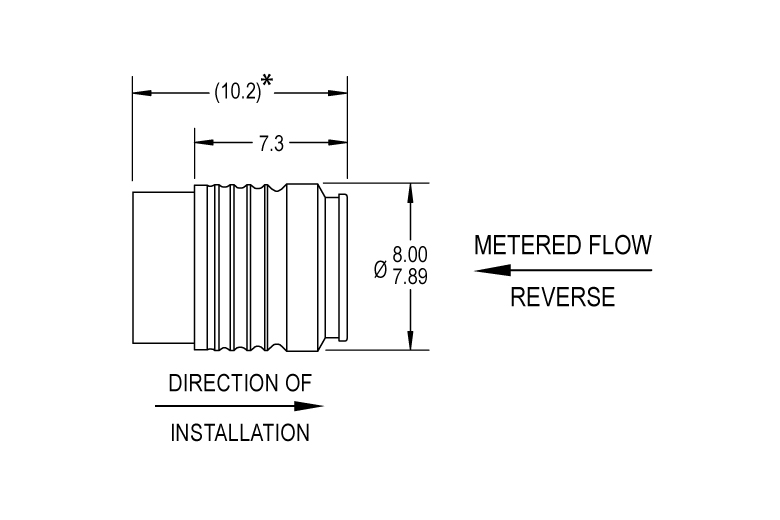

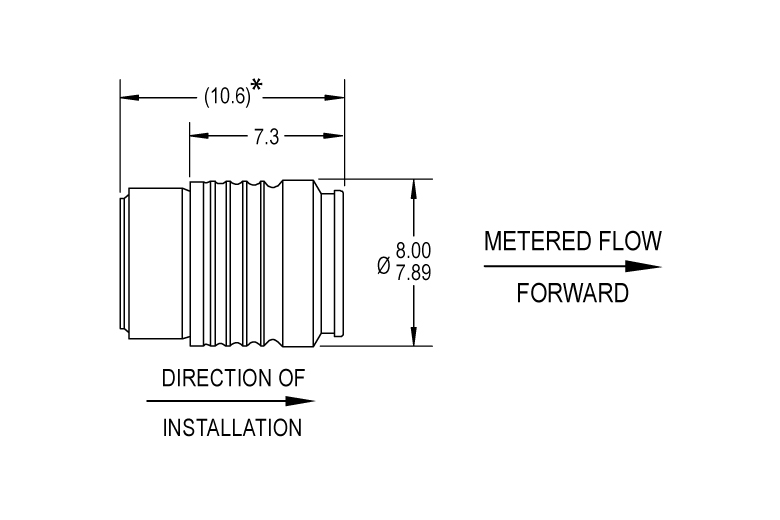

Unscreened Metered Flow Forward Configuration
This image is for reference only. All dimensions are in millimeters.
*Overall length before installation.

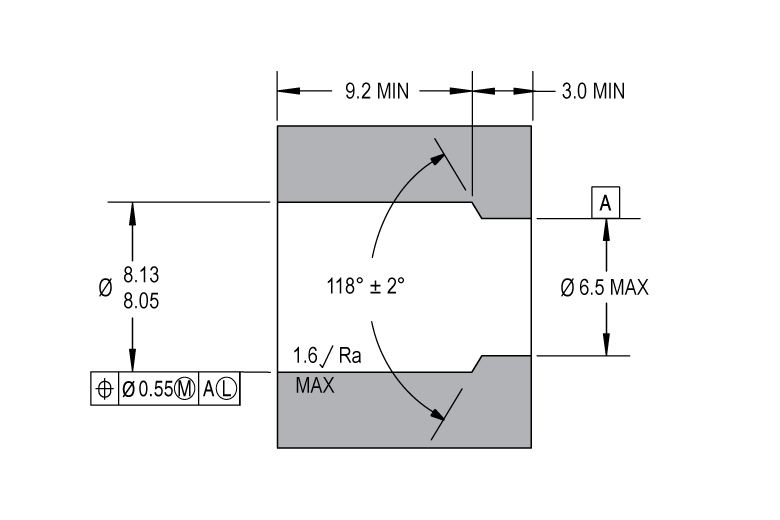

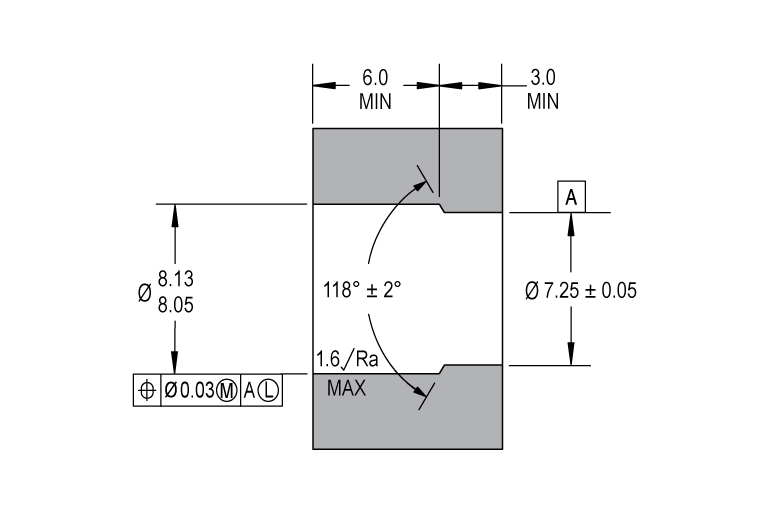

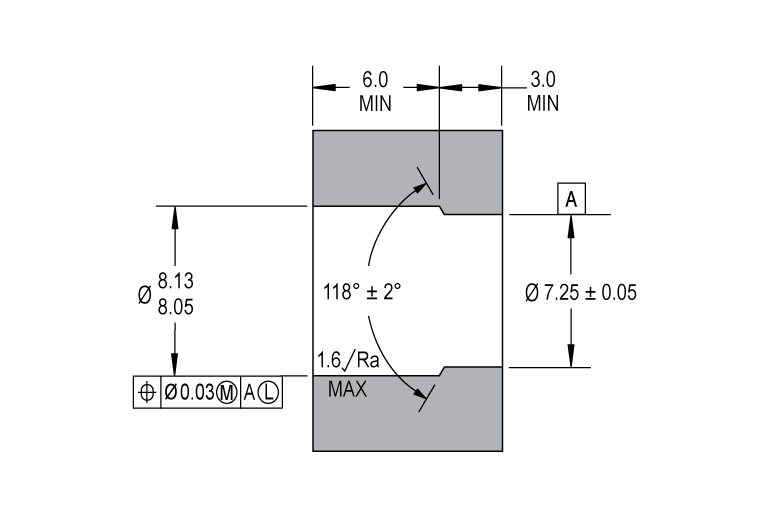

Installation Hole Details
