Solenoid Valves

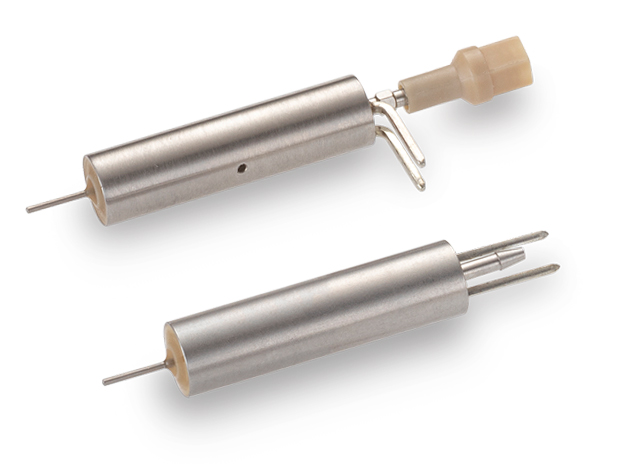

Hypodermic Port Outlet VHS® Series Solenoid Valve

This 6 mm, 2-way (2/2) dispensing solenoid valve has an integrated hypodermic outlet port nozzle that enables dispensing of droplets as small as 20 nanoliters, and practical time-metered dispensing up to 1 ml. With the addition of a mounting sleeve, the valve can also be manifold mounted which enables the precise injection of fluids directly into flow streams. Available in two inlet port options, these valves are ideal for numerous precision dispensing applications in diagnostics and biotech, including lateral flow strip manufacturing, well plate dispensing, and bioprinting, and for dispensing coatings and sealants in industries such as semiconductor manufacturing. Each valve is customizable and 100% tested to ensure performance.

Click here to learn more about this technology

Key Product Facts
  • Dispense Volumes:As low as 20 nL
  • High Speed:250 µs response time and up to 1 kHz operation
  • Low Internal Volume:As low as 30 µL
  • Long Cycle Life:250 M cycles min
  • Operating Pressure:Up to 120 psig

Product Information

General Performance
Characteristic Specification
Inlet Port Options1 Barb Inlet: For use with 1/32" ID flexible tubing
MINSTAC® Inlet: For use with threaded tubing assemblies and safety screens
Operating Pressure2 0 - 120 psig
Cycle Life3 250 M Cycles Min
Recommended Filtration4 12 Microns or Finer
Dispensing Frequency5 Up to 1000 Hz
Operating Temperature 40°F to 120°F (4°C to 49°C)
Max Internal Coil Temperature6 150°F (66°C)
Storage Conditions Temperature: -40°F to 175°F (-40°C to 80°C)
Relative Humidity: 85% Max, Non-Condensing
Weight < 2 grams
Internal Volume 30µL: Barb Inlet Valves
35µL: 062 MINSTAC Inlet valves
1Refer to our MINSTAC offerings for compatible tubing assemblies, threaded safety screens and more.
2Some models are rated for 0 - 30 psig only. Reference part number table.
3Typical cycle life on water; actual cycle life will vary depending on application conditions.
4Valve is sensitive to particles that are hard and fibrous. Larger, flexible particles, such as cells, can be qualified for applications.
5Dispensing frequency is based on water flow within the rated pressure range. Response time and dispense volume profile are drive dependent and vary depending on system parameters.
6A spike and hold drive is required for most applications. To ensure solenoid coil temperatures remain within specification, duty cycle limitations may be required. Contact The Lee Company for recommendations specific to your application.
Materials
Component Material
Seal Options EPDM, FKM, or FFKM
Armature & Plunger Stop 430 Stainless Steel or FeCR
Spring 316 Stainless Steel
Housing PEEK or PPS
Minstac Inlet Port (M) PEEK
Barb Inlet Port (P) 430 Stainless Steel or FeCR
Hypodermic Port Outlet (SP) PEEK, 304 Stainless Steel
*All inlet port types are listed above for reference but do not all apply to each valve.
Epoxy is also a wetted material on all VHS Series valves.

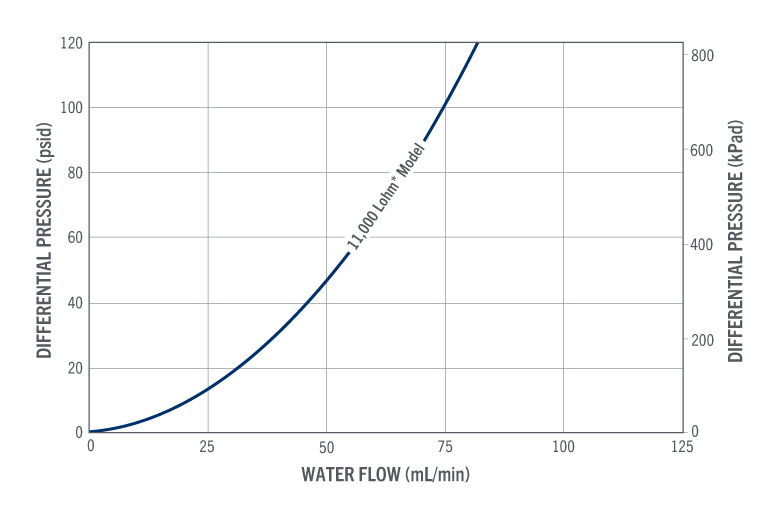

Flow Curve

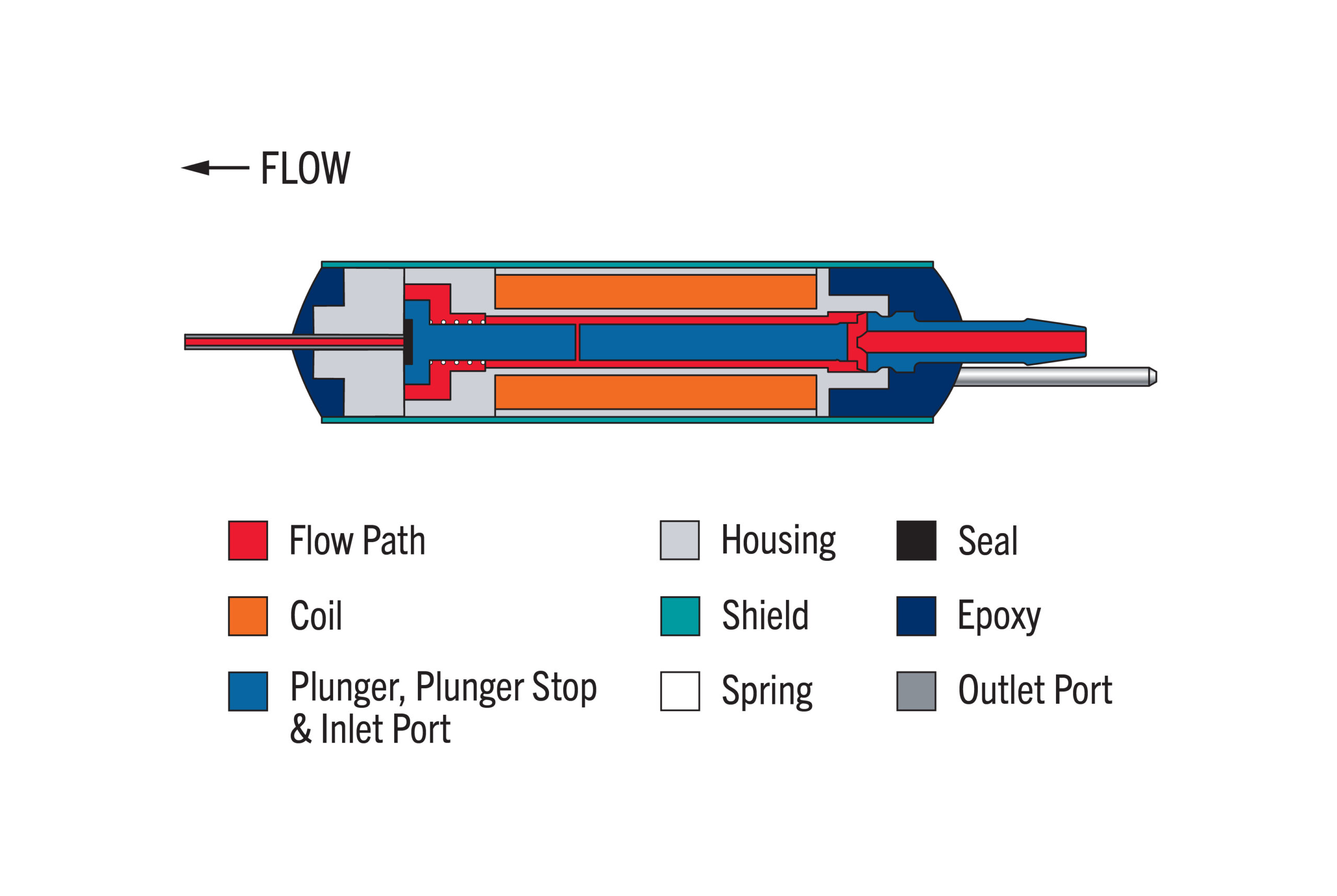

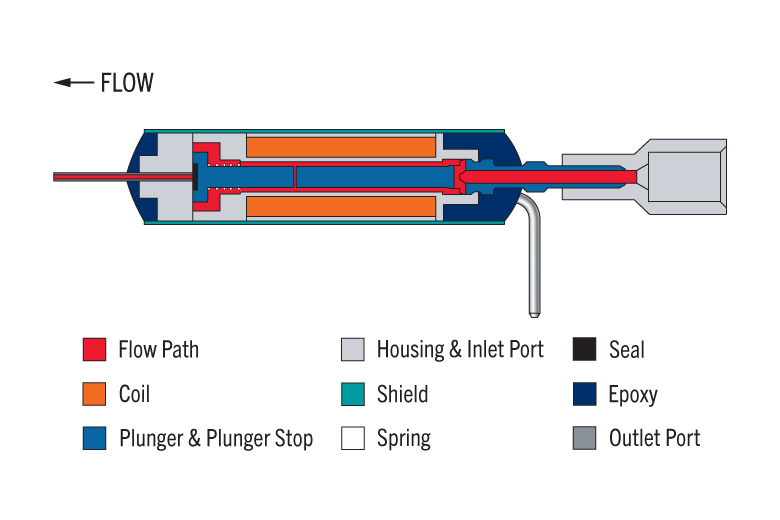

Cross Section Views

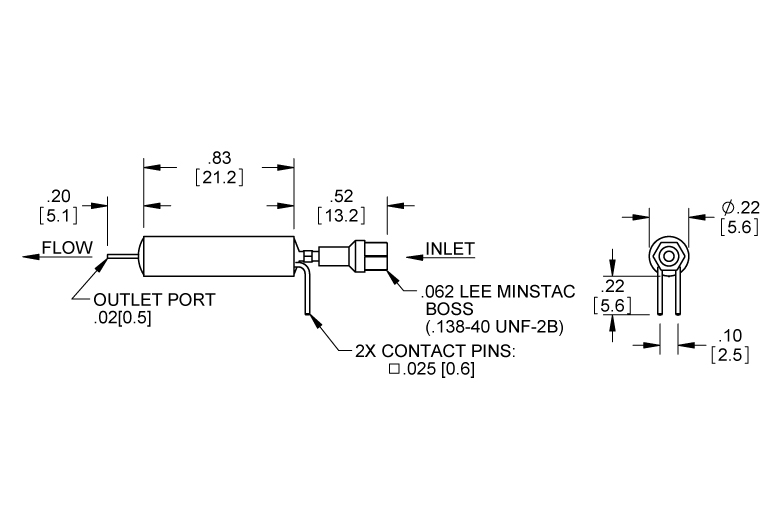

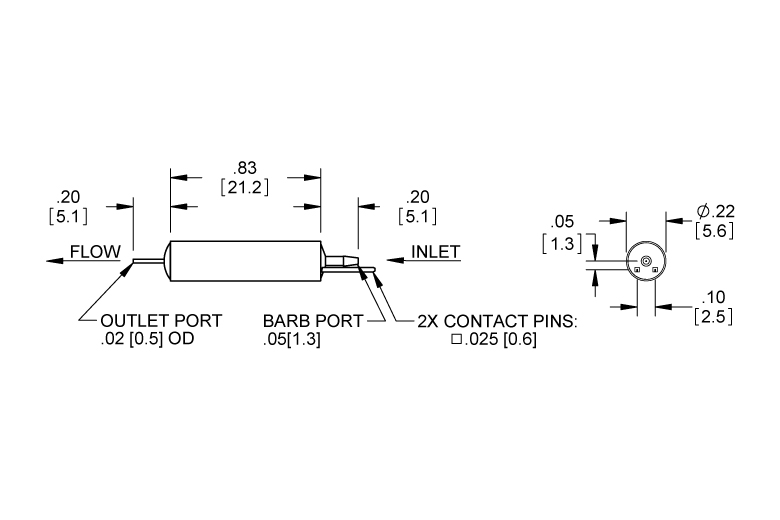

Dimensional Views

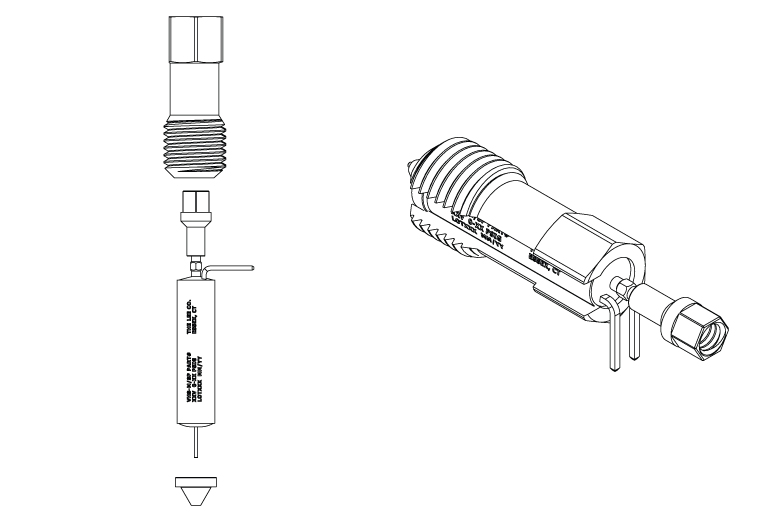

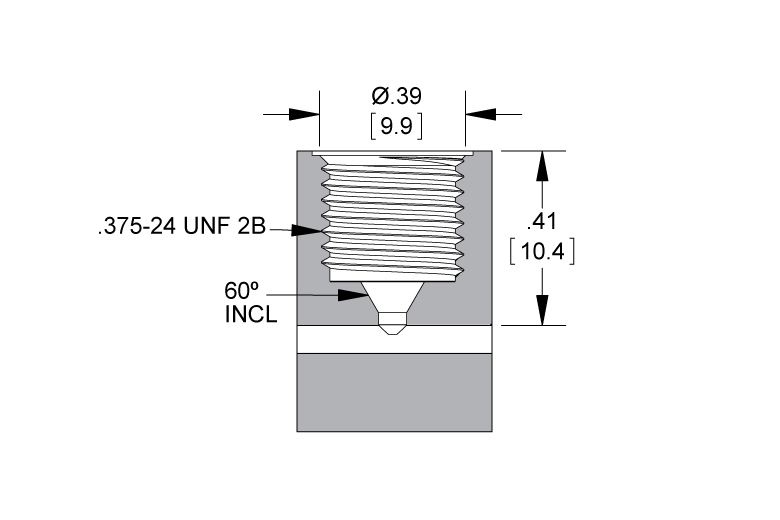

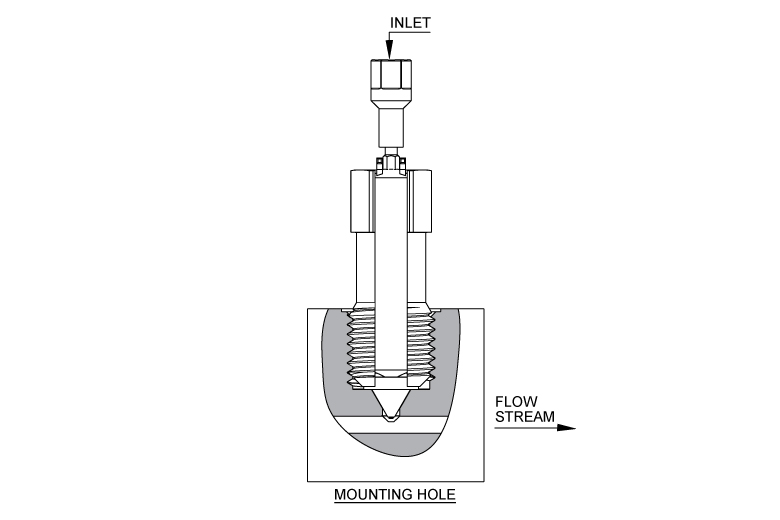

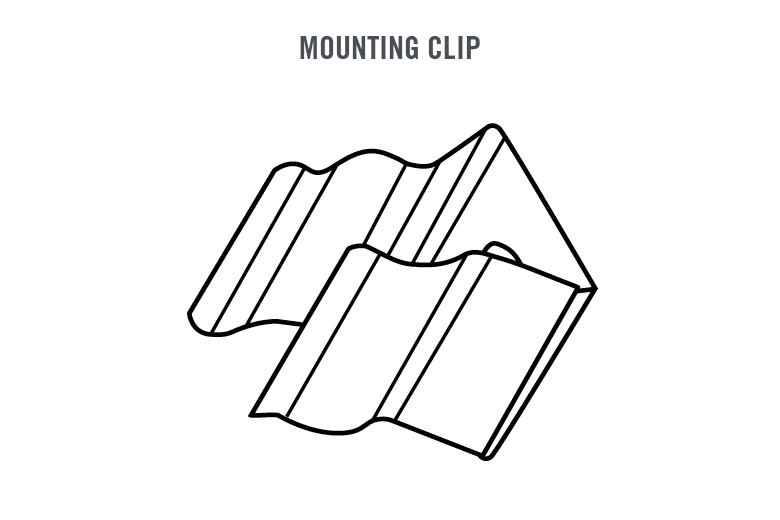

Mounting Details

Get Started

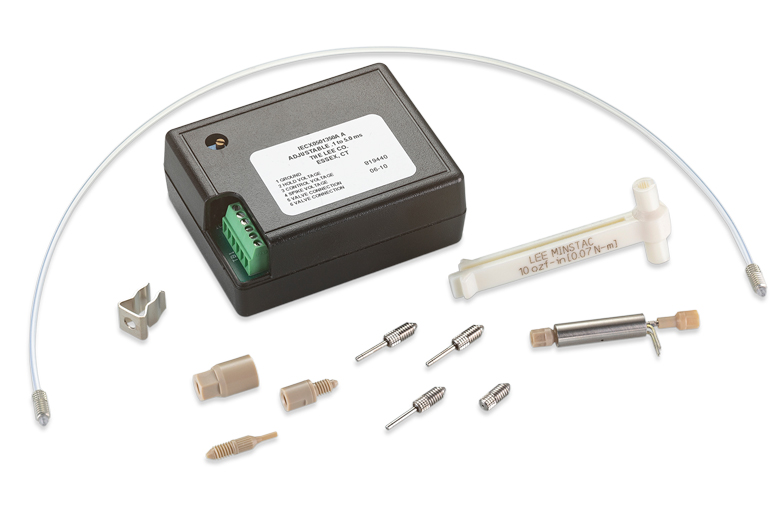

Are you ready to get started? We offer a VHS Valve Evaluation Kit (part number IKTX0322000A) for easy setup and development testing of a dispense system. All that is required is a pressurized fluid source, control signal, and a power supply.

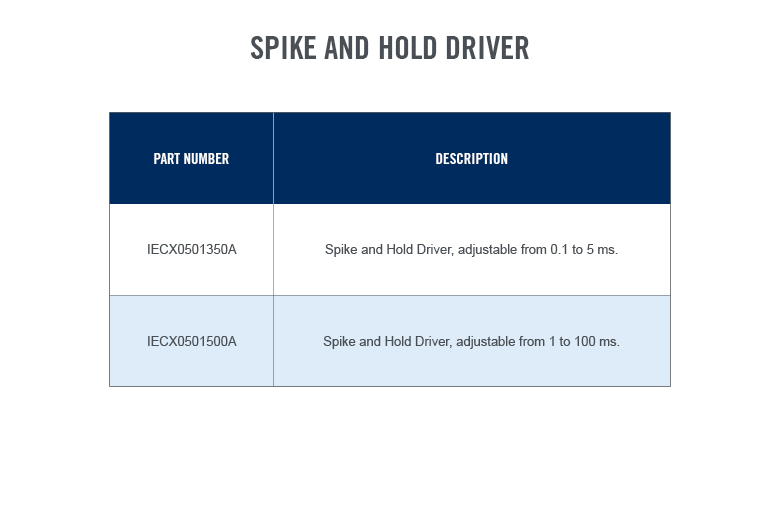

One MINSTAC INLET/MINSTAC OUTLET VHS Series solenoid valve (24VDC, EPDM) is included, along with a spike and hold driver, nozzles, and numerous accessories. This M/M configuration allows you to quickly iterate your dispense setup with the use of various threaded 062 MINSTAC nozzles. If you’d like to test a different outlet configuration, those valves can be purchased separately from the kit and must be rated for a 24 VDC spike voltage.

APPLICATION NOTES

These Application Notes provide practical guidance on how our disc pumps can be used across a variety of applications.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
Filter Part Numbers
INLET
SEAL MATERIAL
CONFIGURATION
PART NUMBER
INLET
SEAL MATERIAL
SPIKE1, HOLD
VOLTAGE* (Vdc)
MIN SPIKE DURATION (ms) OPERATING PRESSURE
(psig)
LOHM RATE2,(Cv) INTERNAL VOLUME
(µL)
INTEGRATED ORIFICE DIAMETER
CONFIGURATION
Request Information
INKX0514900A 062 MINSTAC EPDM 12, 1.6 0.35 0-120 11,000 Lohms (0.001) 35 N/A M/SP Request
INKX0514950A 062 MINSTAC EPDM 24, 3.2 0.35 0-120 11,000 Lohms (0.001) 35 N/A M/SP Request
INKX0514650A 062 MINSTAC FKM 12, 1.6 0.5 0-120 11,000 Lohms (0.001) 35 N/A M/SP Request
INKX0508350A 062 MINSTAC FKM 24, 3.2 0.5 0-120 11,000 Lohms (0.001) 35 N/A M/SP Request
INKX0516200A 062 MINSTAC FFKM 12, 1.6 0.5 0-120 11,000 Lohms (0.001) 35 N/A M/SP Request
INKX0516250A 062 MINSTAC FFKM 24, 3.2 0.5 0-120 11,000 Lohms (0.001) 35 N/A M/SP Request
INKA1226212H Barb EPDM 12, 1.6 0.35 0-30 11,000 Lohms (0.001) 30 N/A P/SP Request
INKA2426212H Barb EPDM 24, 3.2 0.35 0-30 11,000 Lohms (0.001) 30 N/A P/SP Request
INKX0508600A Barb FKM 12, 1.6 0.5 0-30 11,000 Lohms (0.001) 30 N/A P/SP Request
INKX0508650A Barb FKM 24, 3.2 0.5 0-30 11,000 Lohms (0.001) 30 N/A P/SP Request
INKX0507000A Barb FFKM 12, 1.6 0.5 0-30 11,000 Lohms (0.001) 30 N/A P/SP Request
INKX0516500A Barb FFKM 24, 3.2 0.5 0-30 11,000 Lohms (0.001) 30 N/A P/SP Request
Clear Filters
1A spike and hold electrical drive is required for most applications. To ensure solenoid coil temperatures remain within specification, duty cycle limitations may be required. Contact The Lee Company for recommendations specific to your application.
2 Lohm rating of each valve model is based on air performance. Reference the flow curve under the product information tab for typical flow characteristics on water.

Installation & Accessories

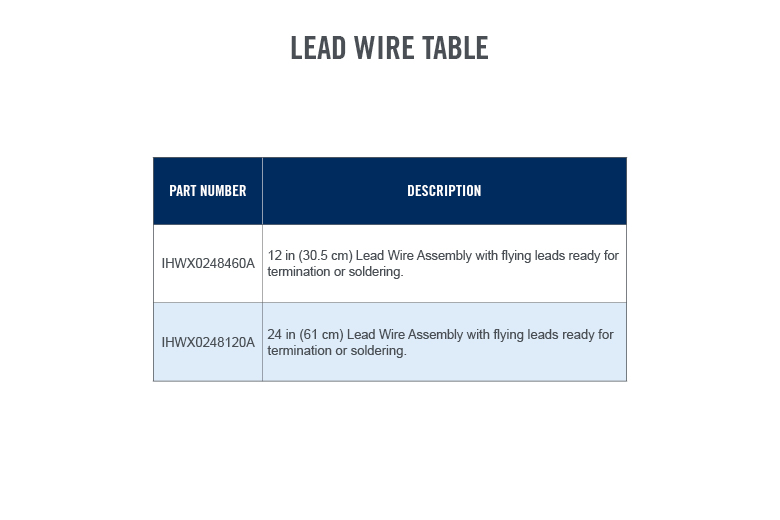

FLUIDIC CONNECTIONS, NOZZLES, & ACCESSORIES

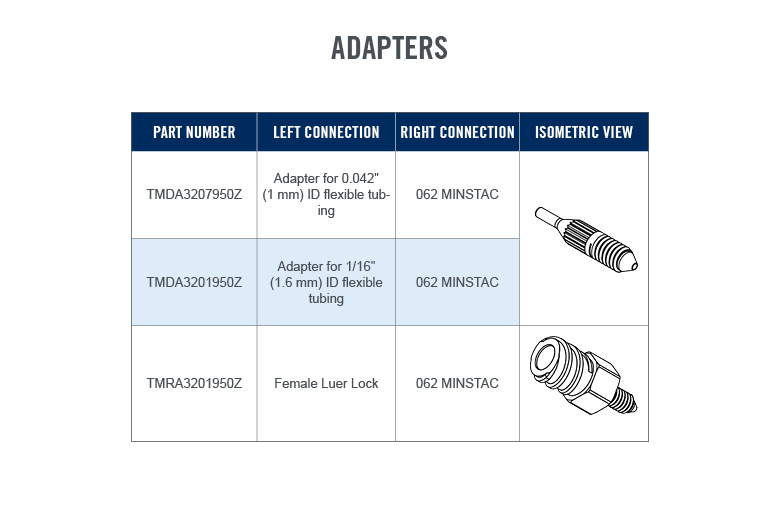

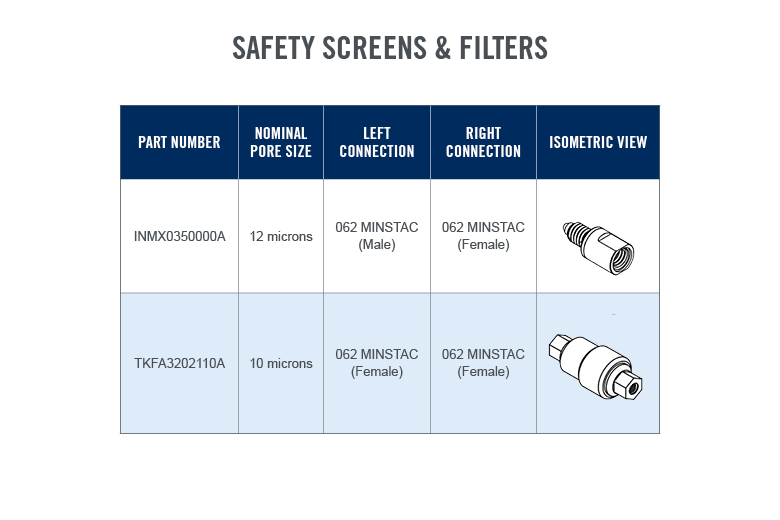

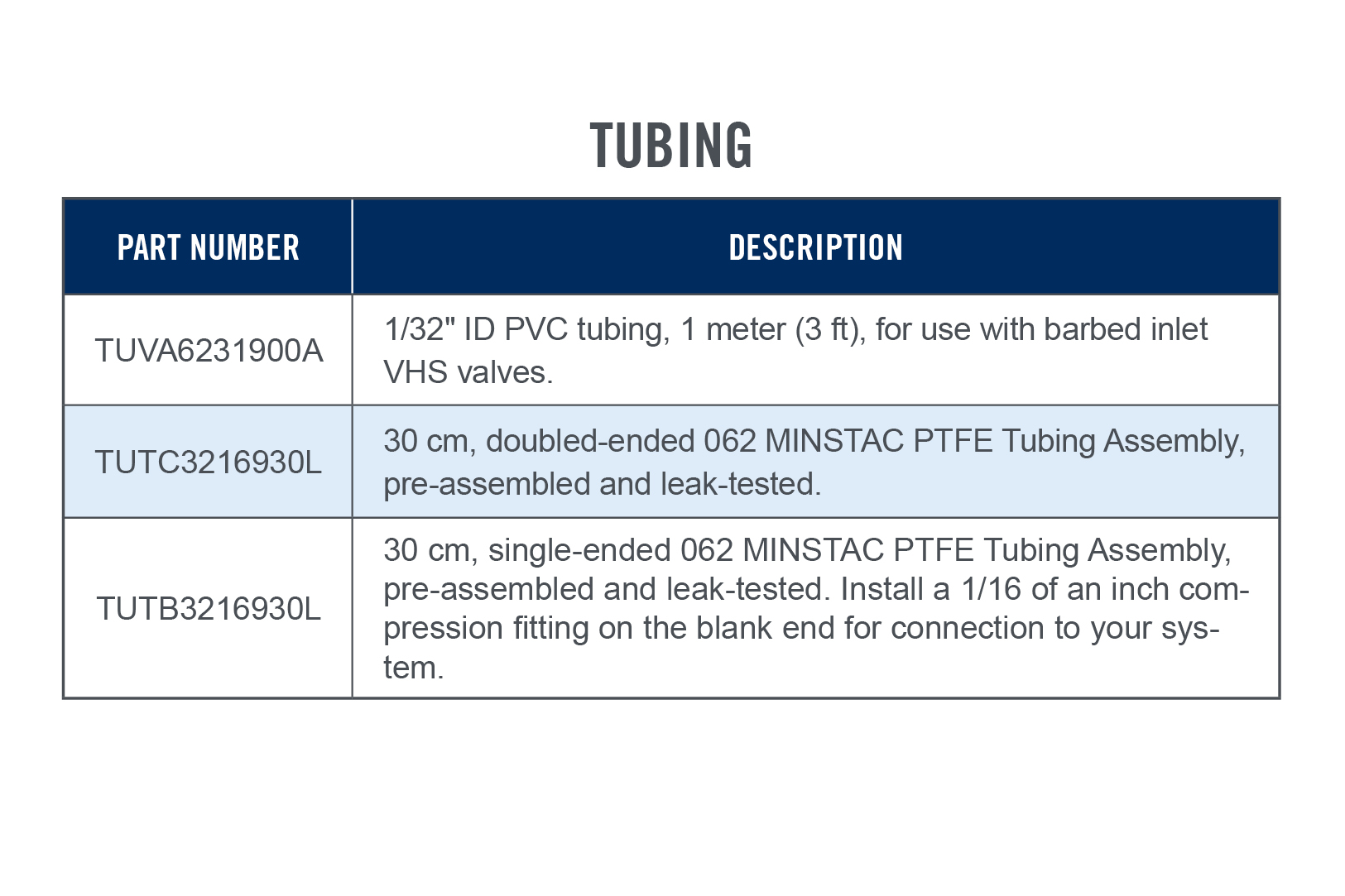

Our Miniature Inert System of Tubing and Components (MINSTAC) product line offers numerous options for fluidic connection to the inlet of the VHS Series valves. This includes tubing assemblies optimized for low shear, and low internal volume, as well as inert check valves, safety screens, filters, adapters and unions. Recommended part numbers that enable connection to the barbed or threaded 062 MINSTAC inlet ports are included in the tables below.

Mounting, Fluidic Connections, & Accessories
STANDARD MANIFOLDS
PART NUMBER DESCRIPTION
INMA0602310B Manifold, 1x valve position, 062 MINSTAC ports
INMA0602320B Manifold, 2x valve positions, 062 MINSTAC ports
INMA0602340B Manifold, 4x valve positions, 062 MINSTAC ports
INMA0602310B Manifold, 1x valve position, 1/4-28 Flat Bottom Ports
INMA0602320B Manifold, 2x valve positions, 1/4-28 Flat Bottom Ports
INMA0602340B Manifold, 4x valve positions, 1/4-28 Flat Bottom Ports
Several standard PEEK manifolds are available to ease prototype setup, including single-valve (1x), 2-valve (2x) and 4-valve (4x) positions per manifold. Manifold part numbers include the manifold only. All solenoid valves and mounting hardware are sold separately. Alternate materials and customized manifold designs are available upon request.
