The Lee Company’s Miniature Inert System of Tubing and Components, or MINSTAC®, is a family of flow connection and control products that enable fast and efficient design of systems to handle critical and challenging fluids. They mate quickly and easily with many of our solenoid valves and pumps to facilitate rapid setup.
Each component is optimized for miniaturization and constructed out of inert materials.

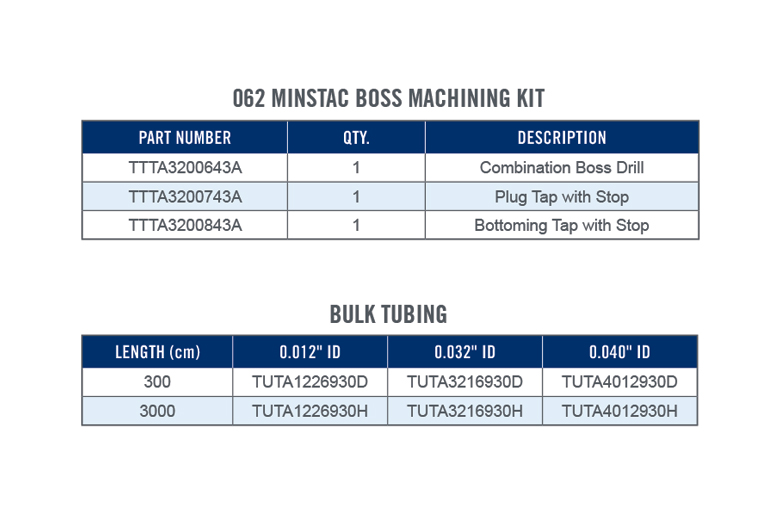

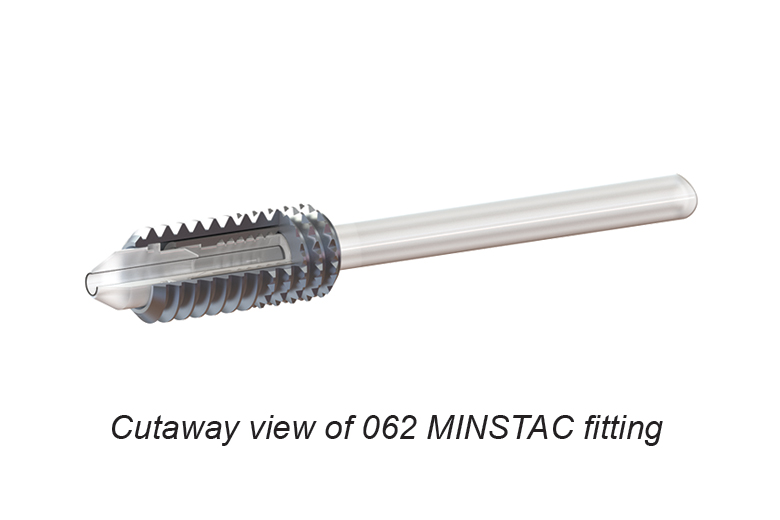

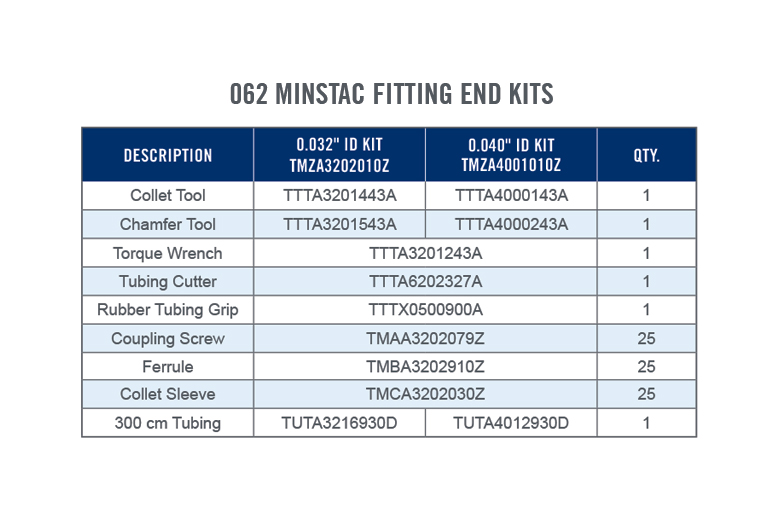

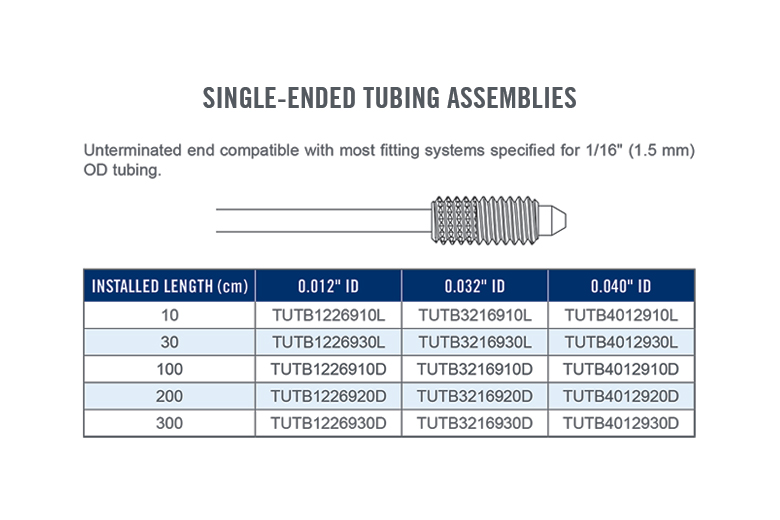

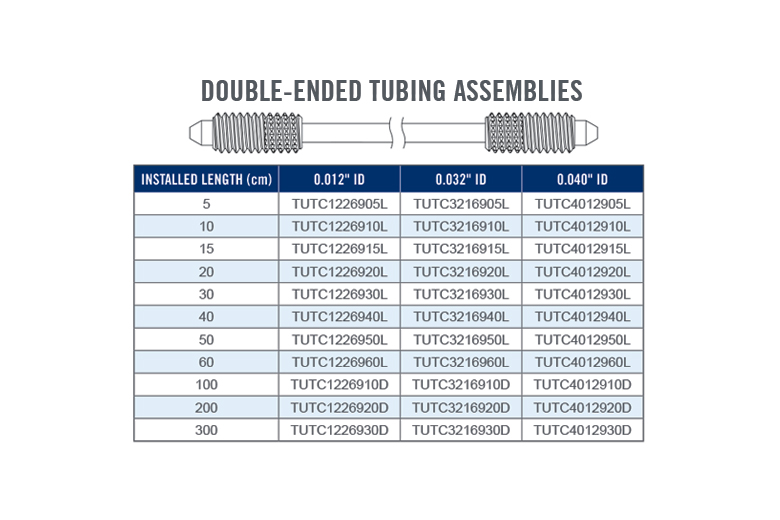

Off-the-shelf single and double-ended tubing assemblies improve your speed of development. The basis of the Lee 062 MINSTAC System is its unique collet-lock design which enables miniature, robust threaded connections for PTFE tubing.

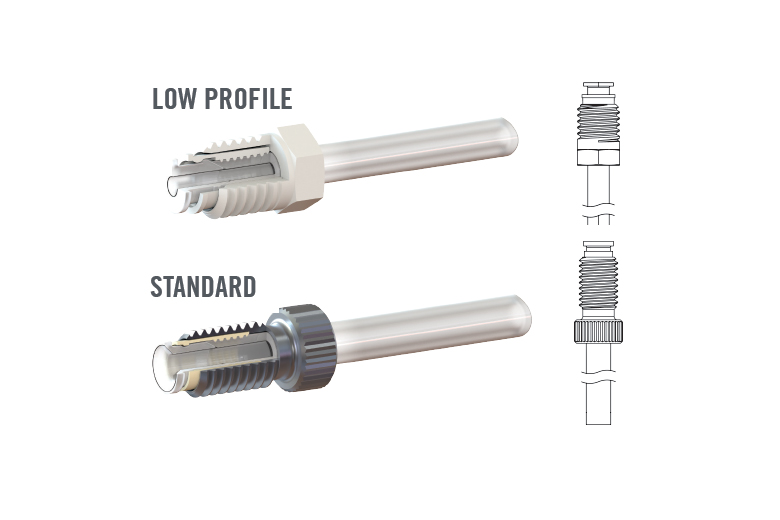

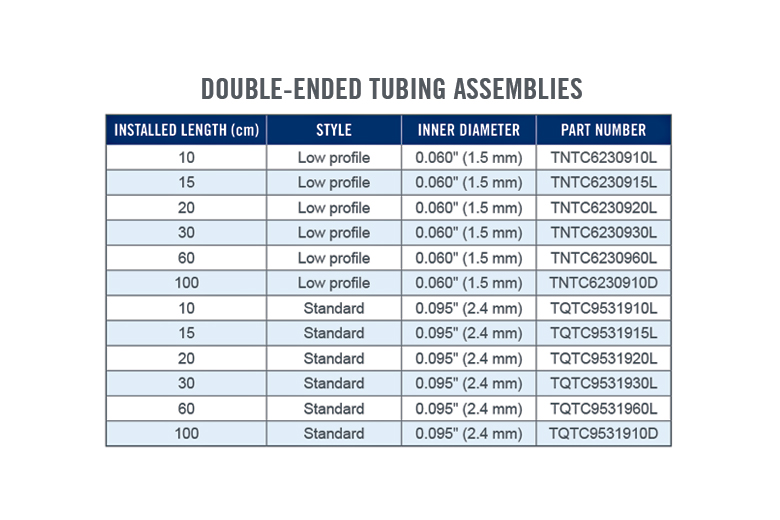

We offer two different styles of ¼-28 flat bottom (FB) tubing assemblies: low profile and standard. Both are available as single or double-ended assemblies to improve your speed of development. Customization available for volume applications.

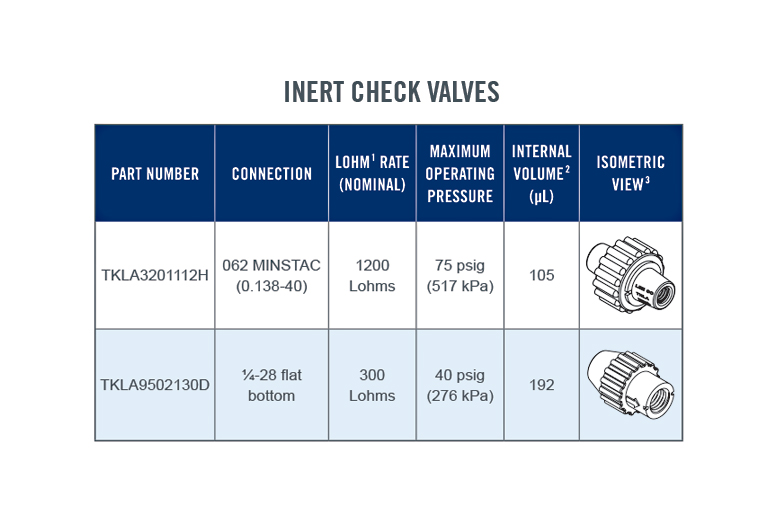

Our inert check valves, made of PEEK, FFKM and PTFE, offer simple threaded connections to ease system integration and provide backflow protection.

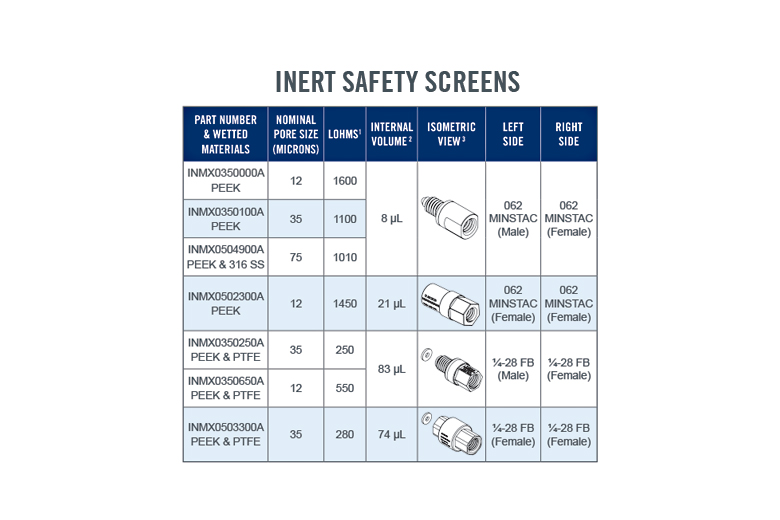

Our inert safety screens are constructed without the aid of any chemical bonding materials, making them ideal for applications with fluids. They are designed to work in conjunction with a system filter and offer last chance protection of sensitive fluidic components such as valves, sensors, and flow cells.

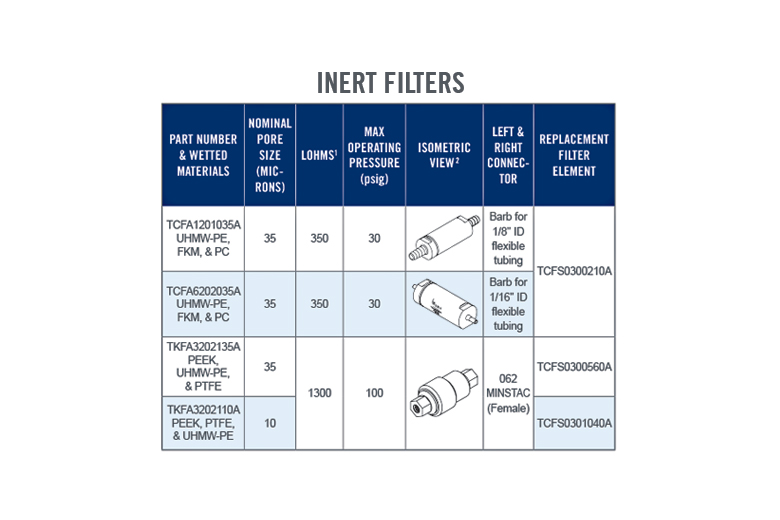

Designed to be easily and economically serviced, these feature replaceable filter elements and inert materials.

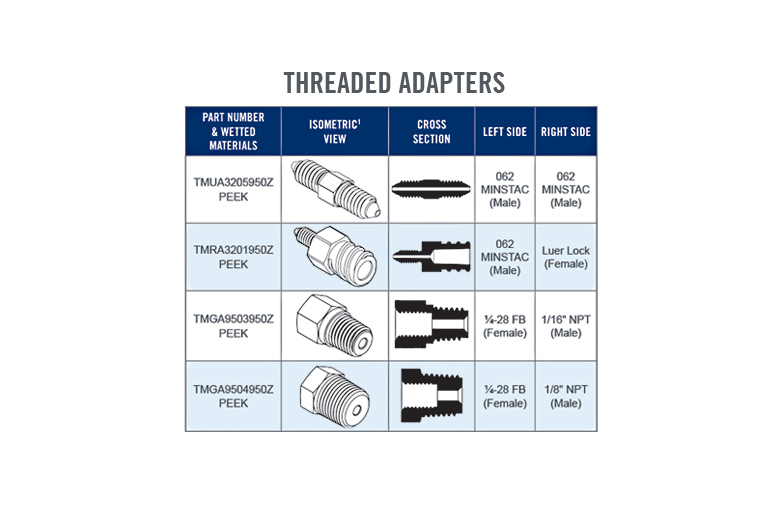

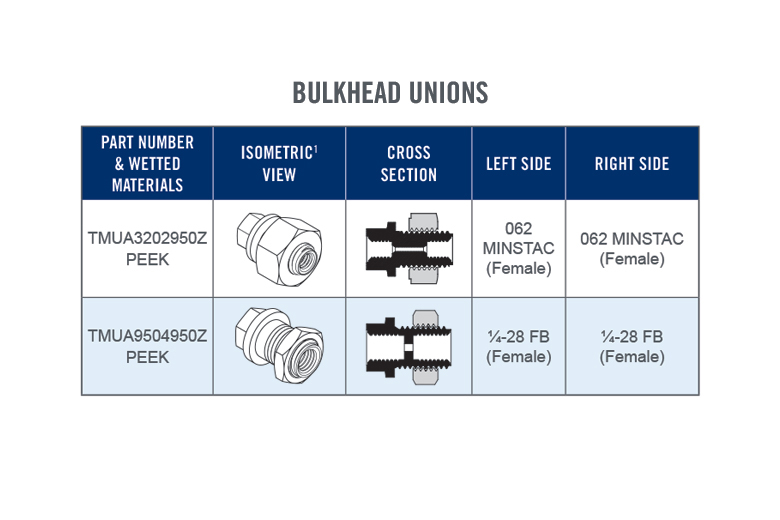

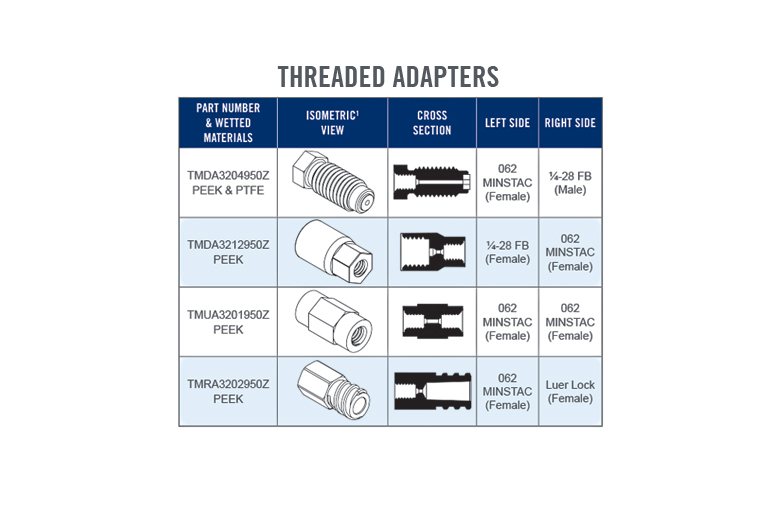

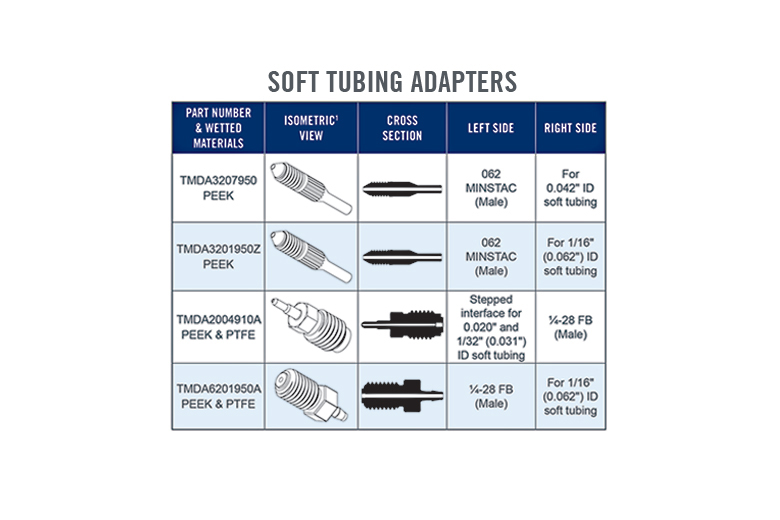

Our MINSTAC adapters and unions enable connection to common industry tubing systems.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
