Disc Pump Drive Electronics and Accessories

Getting Started?

We recommend that customers start with the Piezoelectric Disc Pump Evaluation Kit, which enables rapid evaluation of the pump, without any upfront development effort. The kit implements a range of commonly-used functions, including closed-loop pressure/vacuum control, and contains everything necessary to start testing: two pumps of your choice, drive electronics with an integrated pressure sensor, power supply, PC application for configuration, control and data logging, together with tubing, connectors and filters

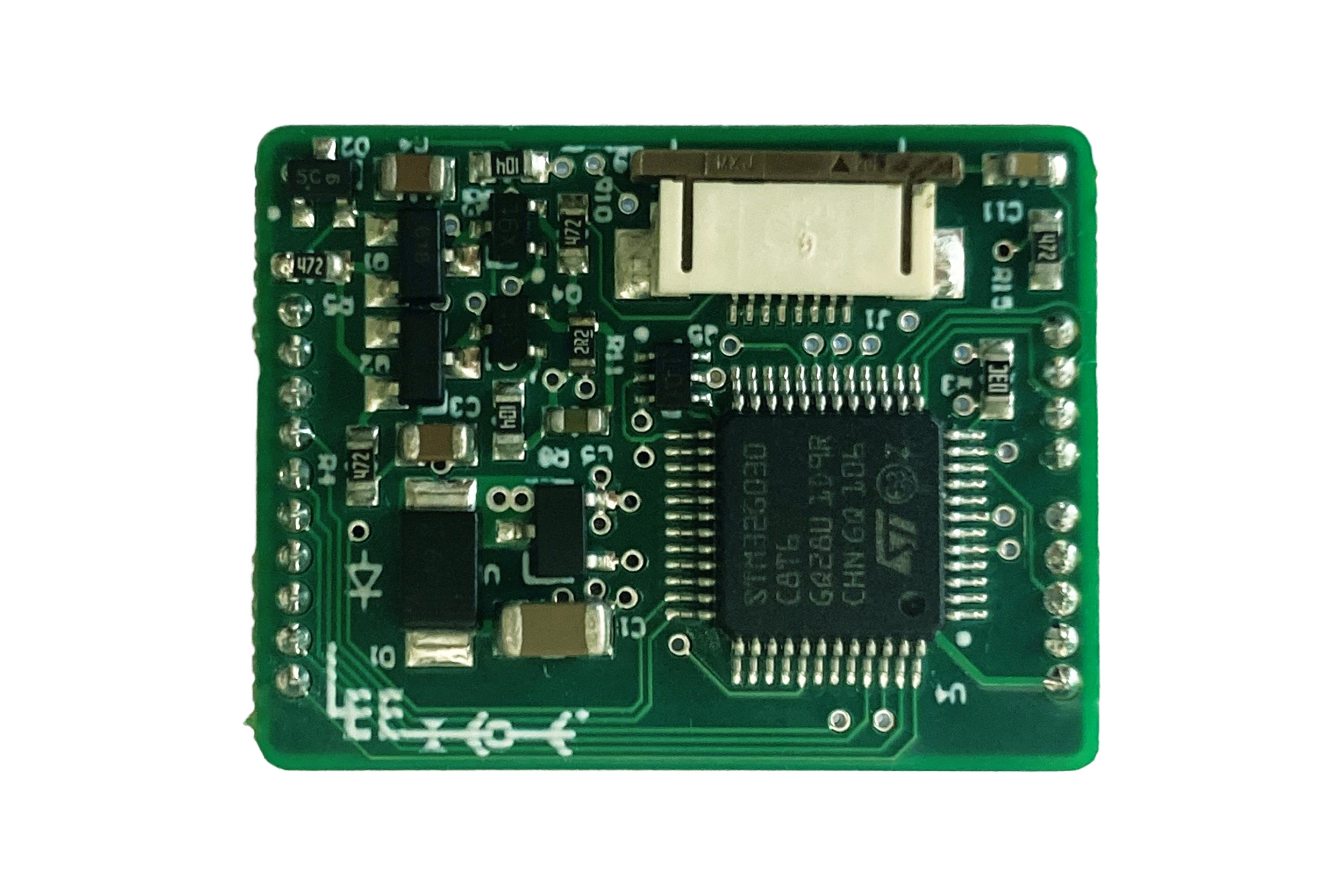

General Purpose Drive PCB

Item	Details
Part Number	UEKA0300000A
Electrical control interfaces	3x analog inputs 1x Pump enable digital gating signal UART
Full-scale response bandwidth	8 Hz
50% response bandwidth	25 Hz
Peak drive efficiency	85 %
Supply voltage	3.5 to 5.5 V
Power consumption (including pump)	0 to 2 W, depending on pump drive level

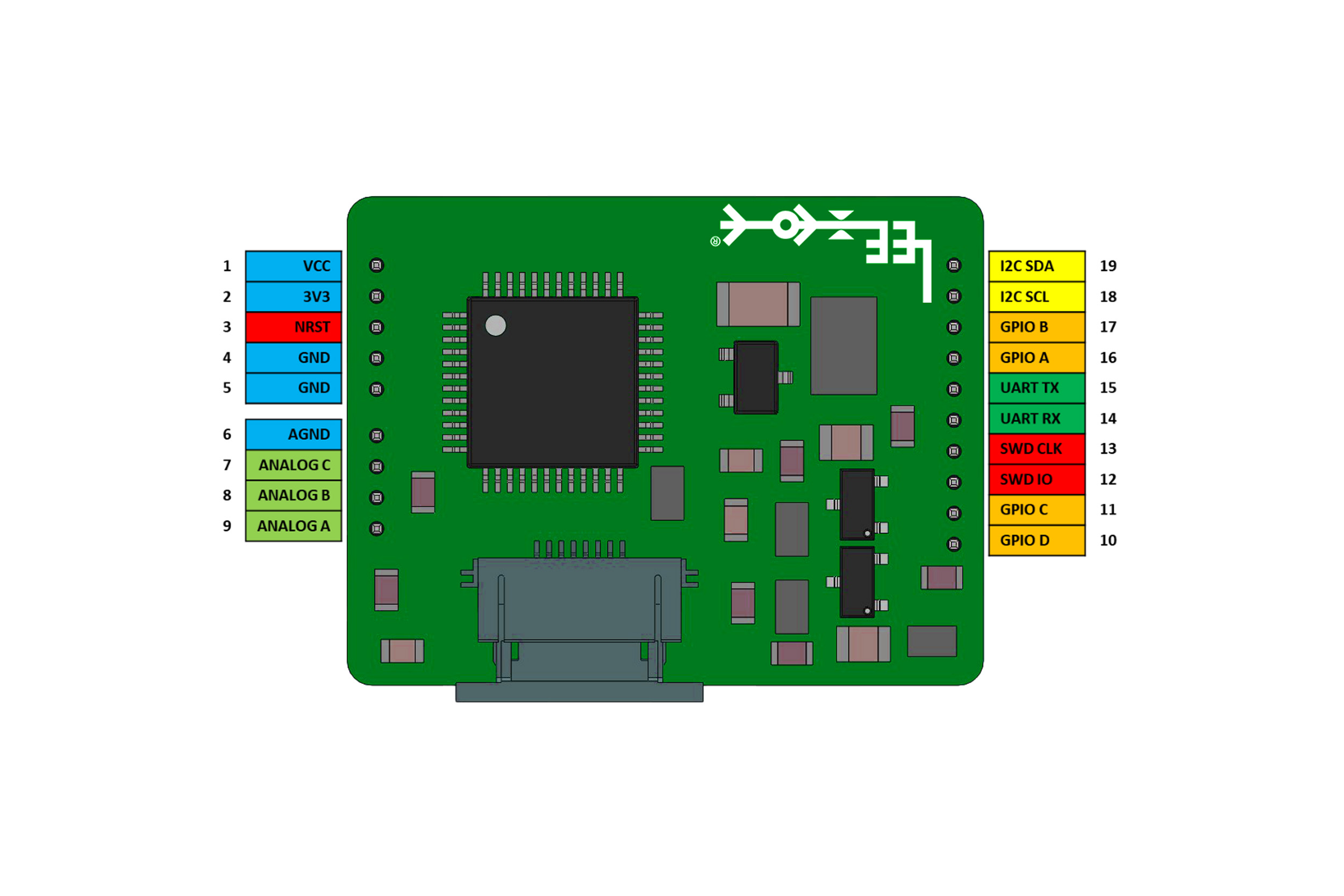

Integration

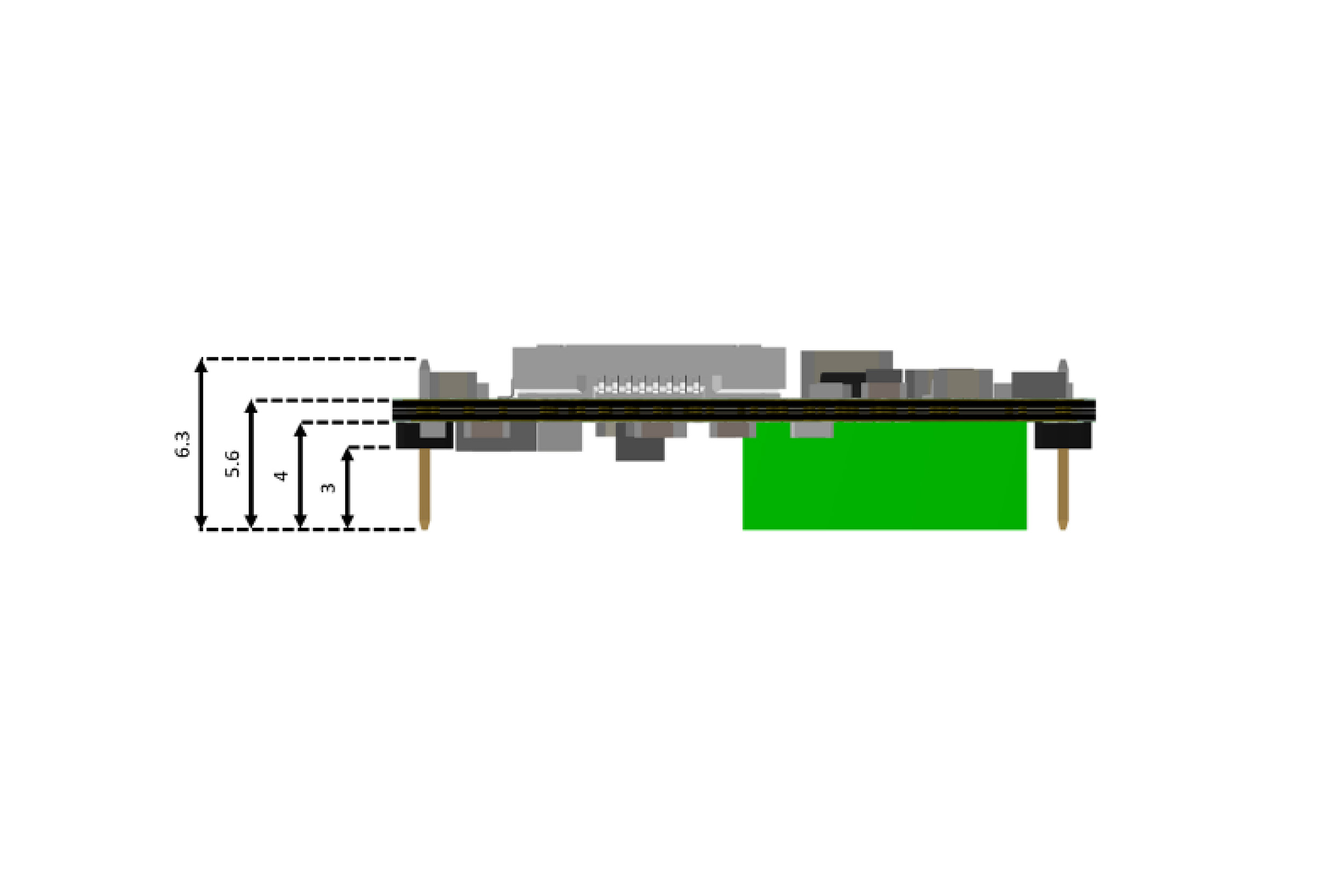

The General Purpose Drive PCB is designed to be mounted on a set of 0.5” (1.27 mm) pitch single inline headers. No additional mechanical restraint is required. Dimensions for the General Purpose Drive PCB are shown in millimeters.

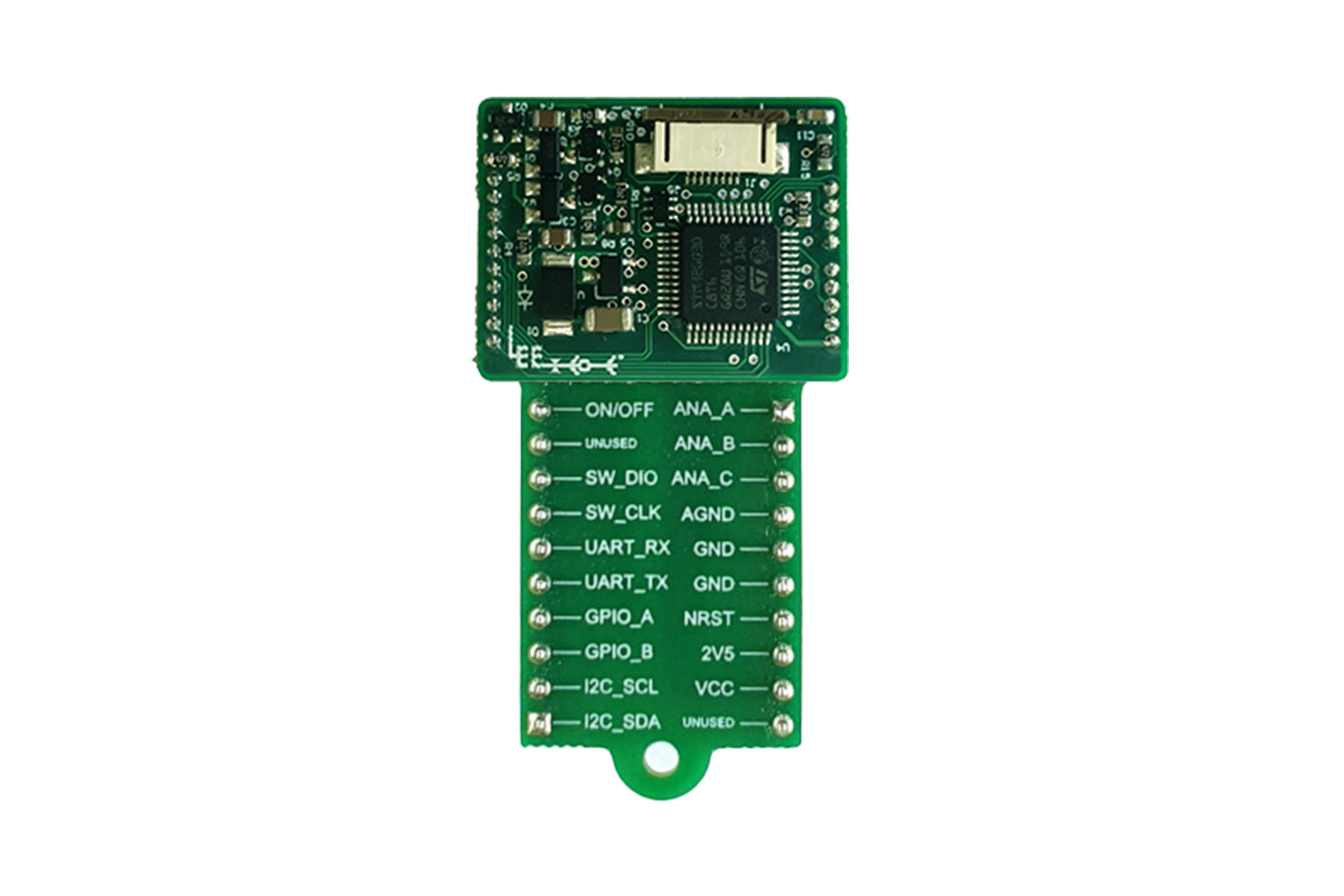

Breakout PCB

The General Purpose Drive PCB can be mounted on the Breakout PCB, which presents the PCB electrical interface on two 0.1” (2.54 mm) single inline headers, suitable for integration with 0.1” prototype board, enabling rapid prototyping and testing at the start of the development process.

Part Number: UACX0500100E

Resources

User Manual providing information to aid the integration of the Disc Pump Drive PCB with your system.

Disc Pump Drive PCB User Manual

A CAD model of the General Purpose Driver Board.

General Purpose Drive PCB CAD Model

Technical Guide covering the serial communications protocol that you can use to control the Disc Pump Drive PCB from your own software.

TG003: PCB Serial Communications Guide

Our GitHub code snippet library provides examples of how to control the Disc Pump Evaluation Kit independently of the Disc Pump Control App. The initial examples provided cover a range of functions, including turning the pump on and off, setting drive power, closed loop control of pressure and reading back and plotting data.

The code snippet library, which is hosted on GitHub, is intended to support customers after their initial evaluation of our pump technology, as they move on to developing prototypes and products. We welcome suggestions for how we can improve and build upon this repository; please feel free to share your ideas, feature requests and any bugs you identify with us.
