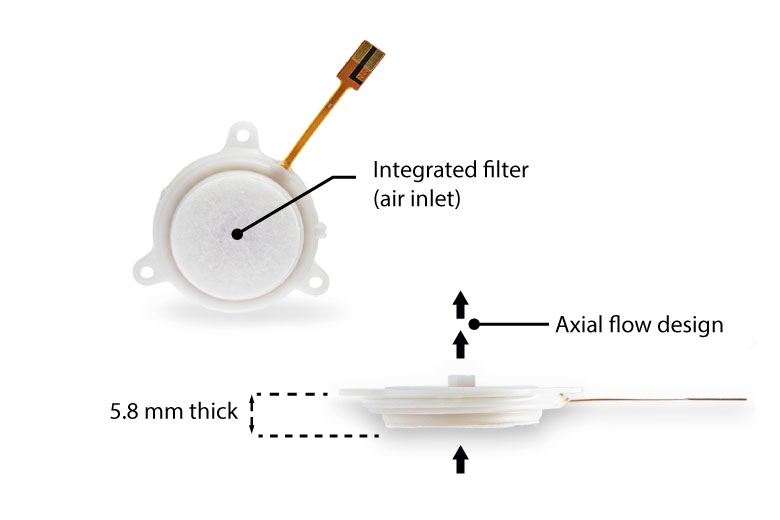

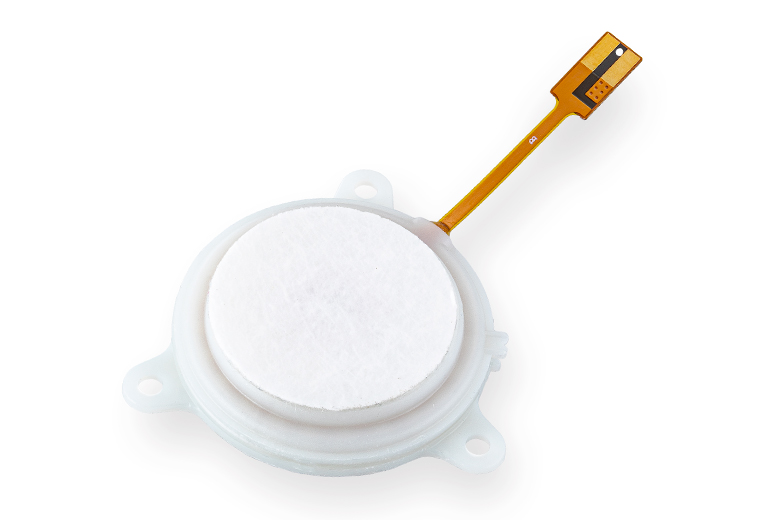

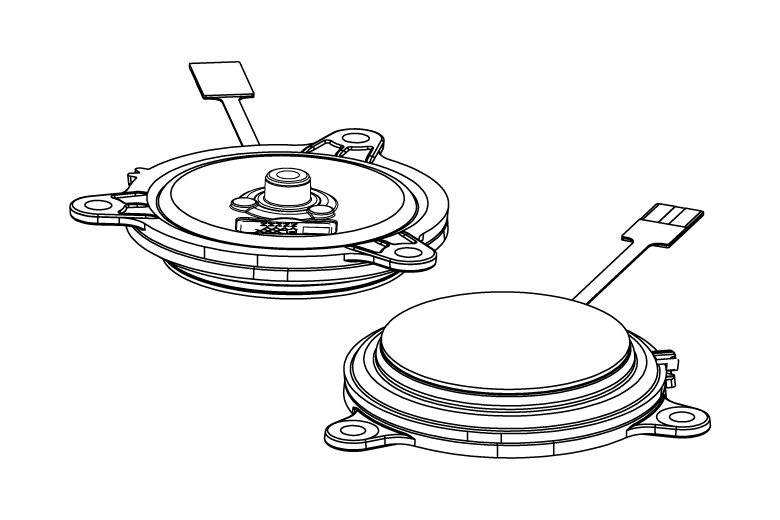

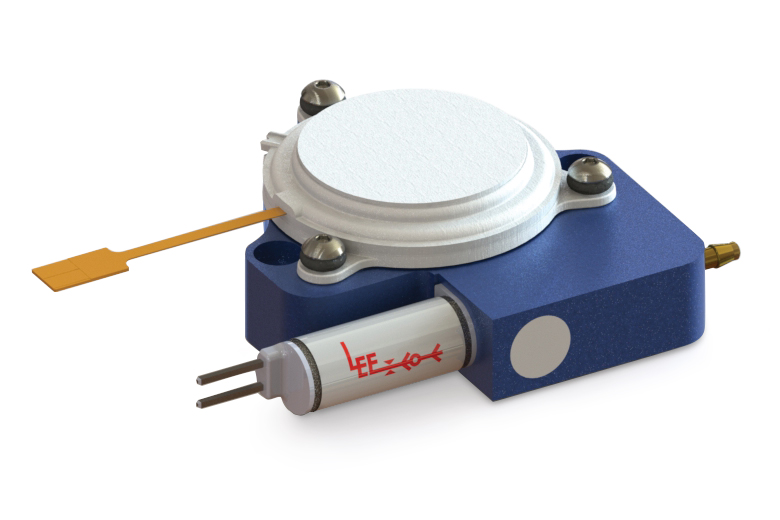

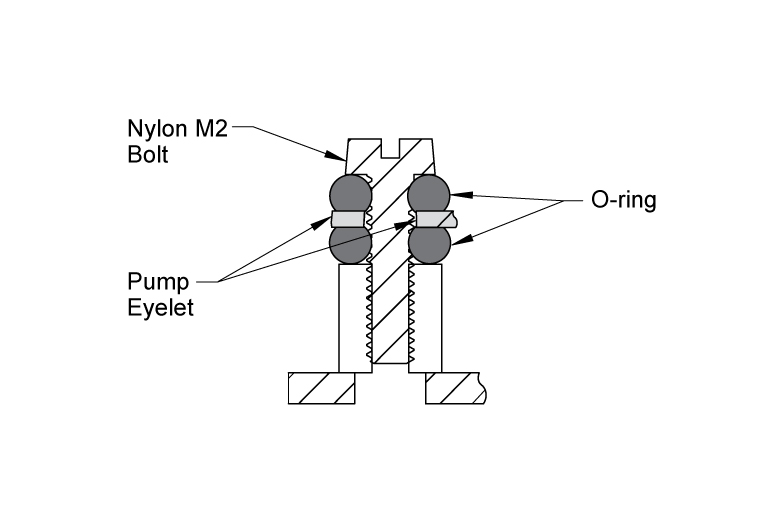

The Disc Pump is a revolutionary, ultrasonic, pneumatic piezoelectric micropump that generates pressure or vacuum in a small, silent, vibration-free form factor and delivers highly accurate, ultra-smooth flow control. The Ultra Slim (US) Series Disc Pump offers exceptional performance and efficiency along with a narrow, manifold mount profile and integrated hydrophobic filter. These pumps are ideal for applications in medical devices, life sciences, and environmental monitoring, including microfluidics, pipetting, wearable devices, and portable sensing technologies.
Click here to learn more about the technology

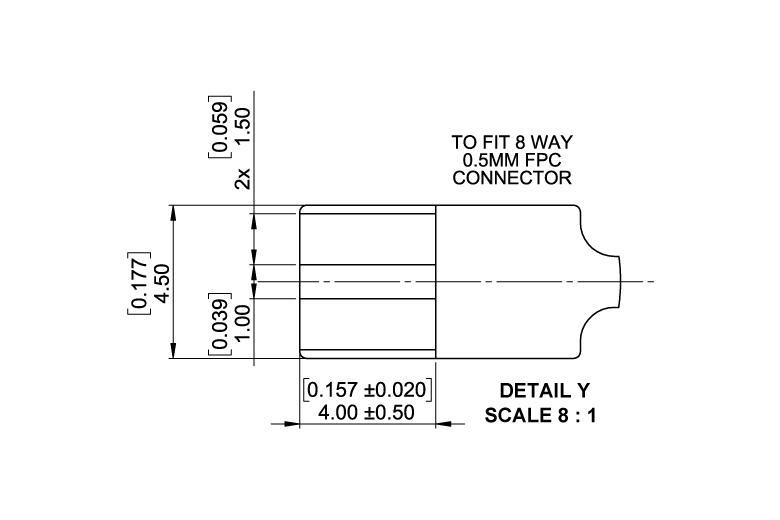

| Characteristic | Specification |
|---|---|

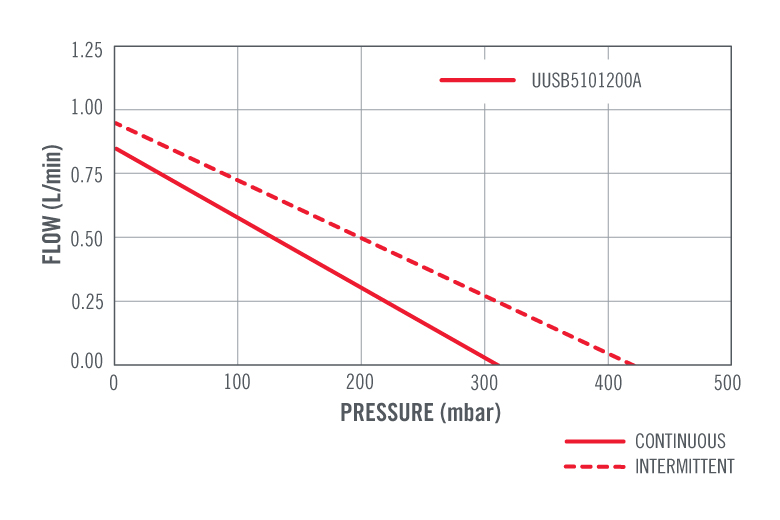

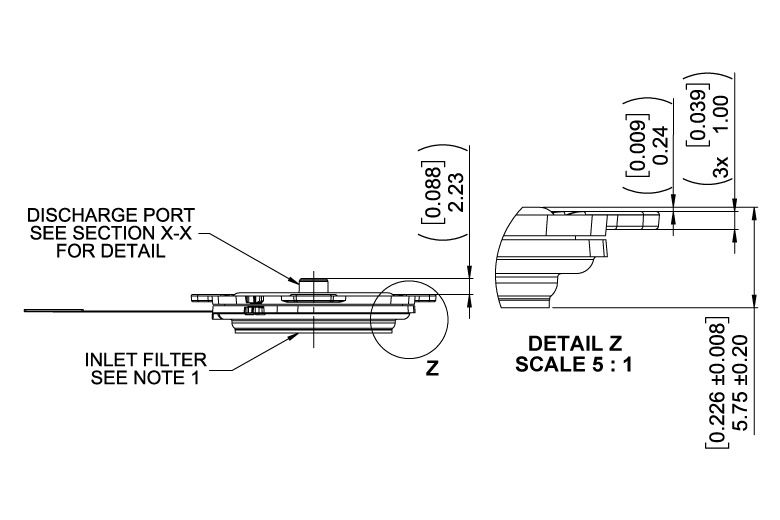

| Free Flow Rate | 0.95 L/min |
| Pressure Range | -420 mbar to 310 mbar |
| Silent1 | <10 dB |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Control Precision2 | Less Than 0.1% |
| Response Time | Ultra-fast Millisecond Response |
| Turn-down Ratio3 | Infinite |
| Inlet Filtration | Hydrophobic ePTFE Membrane Laminate Functional Layer: PFTE Backer Layer: Polyester Nominal Pore Size: 3 μm |

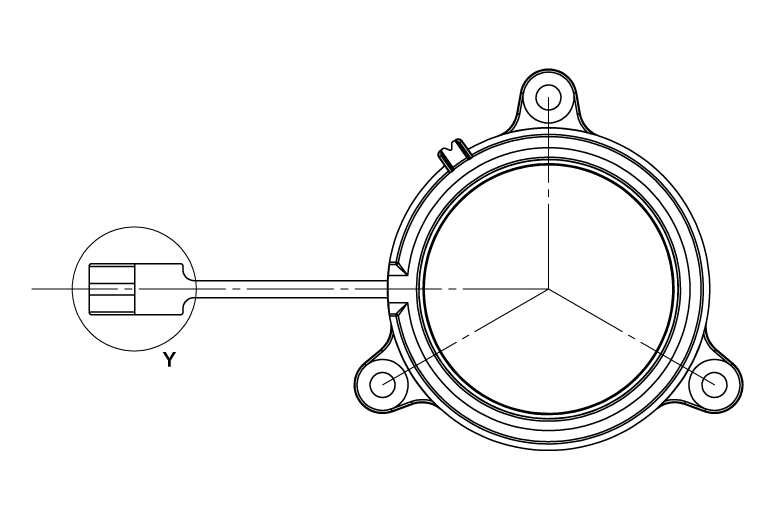

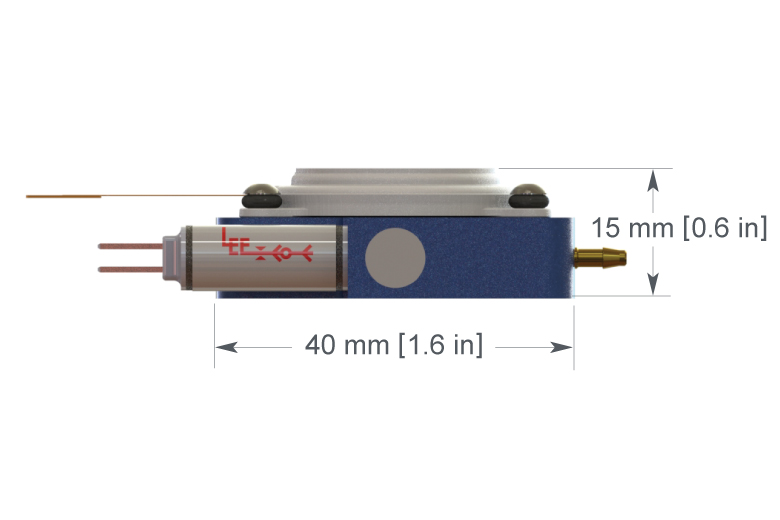

| Compact Size | 29 mm Diameter |
| Lightweight | 5 g |
| Humidity Range4 | 0 to 95% RH |
| Pumping Medium5 | Air. Liquids can be controlled indirectly. |
| Materials | |
| Polyarylamide | Stainless steel |
| PET | Acrylated urethane |
| Polyimide | Gold |
| Nickel | Lead zirconium titanium oxide |
| Aluminium | Titanium |
| Silver | Copper-Tungsten |
| Epoxy | Nitrile |
All disc pumps are RoHS compliant.
Are you ready to get started? You can be up and running one of our disc pumps in a matter of minutes with the ‘plug and play’ functionality of our Development Kit. We make it easy for you to test this new technology and see it’s advanced functionality.
Make sure to check out our extensive resources and literature – User Manuals, How-To Videos, and Application Notes – to guide you from initial set-up, to using the disc pumps for in-situ applications. Our Frequently Asked Questions covers any further information you may need.
Our Disc Pump Development Kit enables the rapid evaluation of one or multiple pumps, together with solenoid valves, making it easy to test system-level prototypes and evaluate the unique features of the piezoelectric disc pump technology.
Watch this video of our Business Development Manager, John Watson, as he unboxes a Disc Pump Development Kit and explains everything that comes with it:
Note that Disc Pumps and valves must be purchased separately. This enables customers to select the exact model(s) that they wish to test. For help selecting the right model for your application, please speak to a Lee Sales Engineer.
These Getting Started Resources act as a primary resource for those starting out with the disc pumps. The resources include safety information, signposting to other resources, and guidance for running and controlling the disc pumps.
These Application Notes provide practical guidance on how our disc pumps can be used across a variety of applications.
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
These Technical Guides provide non-application specific instructions and advice on the disc pumps.
Software includes PC-based interface and code snippets for running and controlling the disc pumps. The Electronics Reference Design package contains PCB and firmware reference designs together with supporting technical guides. This provides everything necessary for customers to design their own drive electronics.
The Smart Pump Module combines our piezoelectric disc pumps with drive electronics and pressure sensing in a tightly-integrated package.
These Application Notes provide practical guidance on how our disc pumps can be used across a variety of applications.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
