Pumps

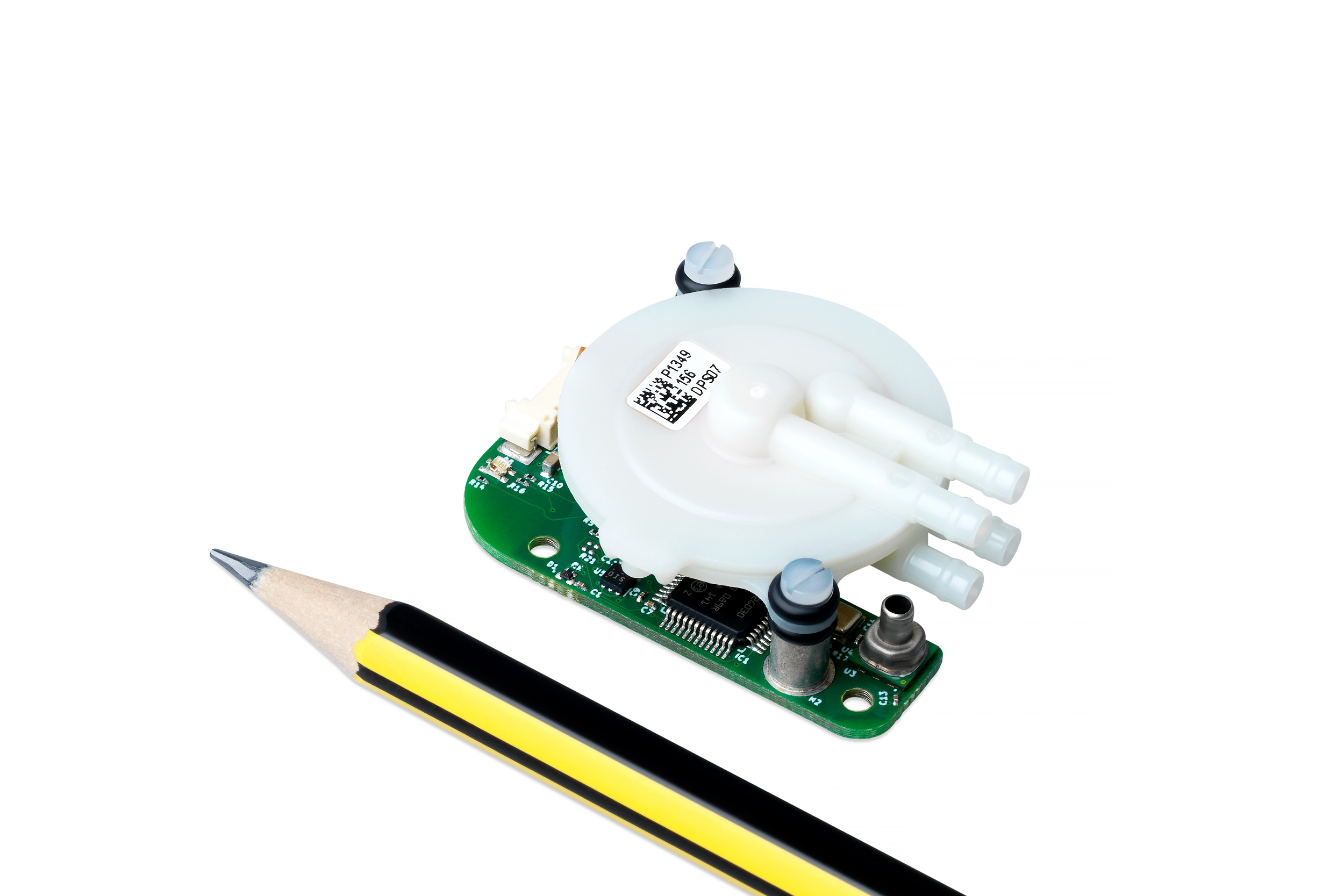

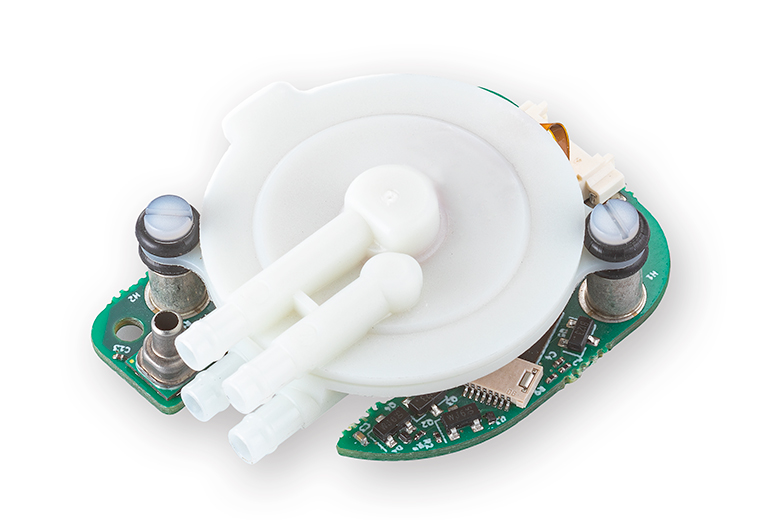

Smart Pump Module

The Smart Pump Module (SPM) can be used to enhance our piezoelectric disc pumps with drive electronics and pressure sensing. This standalone pump module offers precision control that is not possible with conventional pumping technology. It is compatible with any of our disc pumps, including the BL, XP, LT, or HP Series pumps. The module’s closed-loop feedback from the pressure sensor allows for exceptional pressure and vacuum regulation, benefiting from the unique features of the disc pumps.

Contact a Lee Sales Engineer Get Your Development Kit Go to Product Finder
Key Product Facts
  • Standalone Pressure / Vacuum Regulation
  • Up to 600 mbar Stall Pressure, -400 mbar Stall Vacuum, or 2 L/min Free Flow Depending on Pump Choice
  • Compact and Lightweight (11 g)
  • Simple 5-wire Interface for UART or I2C Communication
  • Digital and Analog Control Options

Product Information

Materials
Materials
Polyarylamide Stainless steel
PET Acrylated urethane
Polyimide Gold
Nickel Lead zirconium titanium oxide
Aluminium Titanium
Silver Copper-Tungsten
Epoxy Nitrile

All disc pumps are RoHS compliant.

Electrical Operation
  • 5-wire interface:
  1. VCC – 3.5 to 5.5 V supply
  2. UART RX or I2C SDA (3.3 V)
  3. UART TX or I2C SCL (3.3 V)
  4. Ground
  5. 0 to 3.3 V, analog in
  • The integrated pump drive electronics provide an AC drive waveform of 20-22 kHz. Pump drive voltage must not exceed 48 Vrms. Power is limited to between 0 and 1 W into the pump for continuous operation, and up to 1.4 W for intermittent operation. Drive electronics also perform drive frequency optimization. Drive efficiency depends on the operating use case.

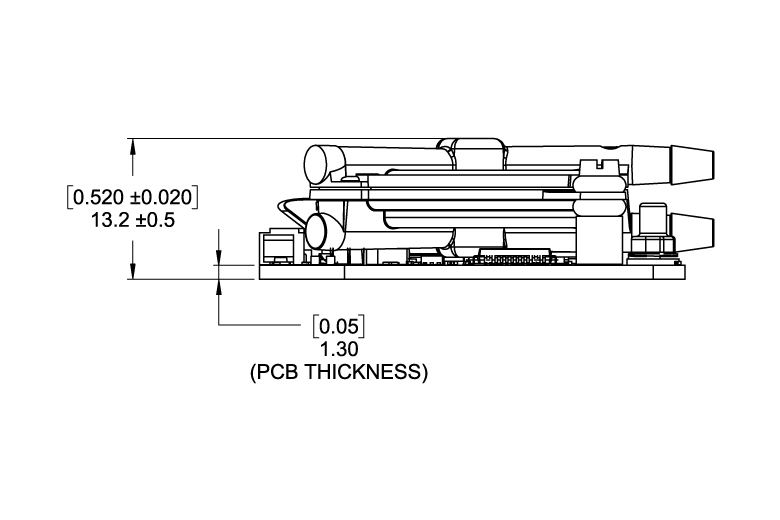

Dimensional Views

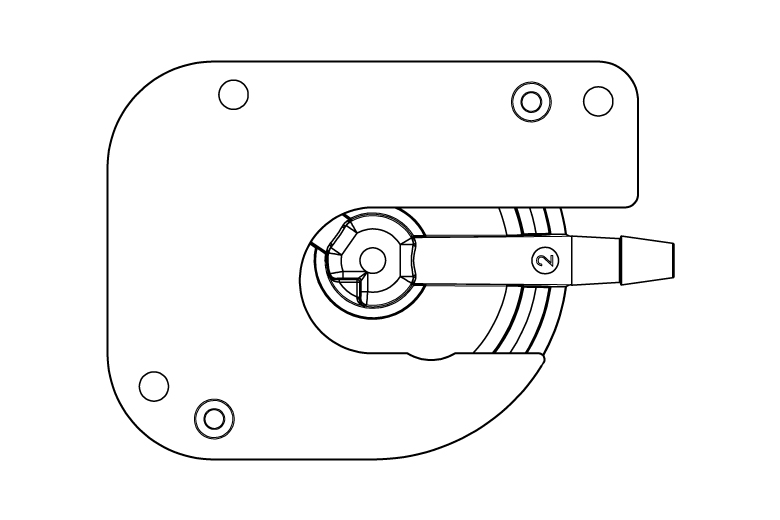

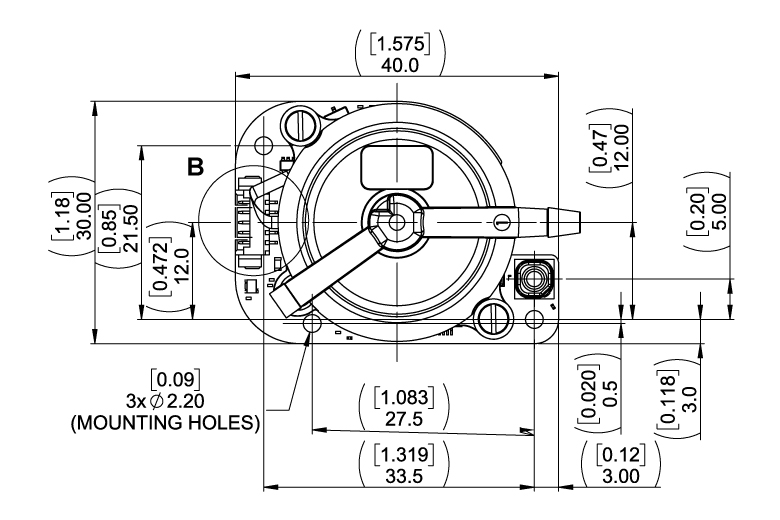

Top view of the Smart Pump Module with HP Pump.
This image is for reference only. All dimensions are in millimeters [inches].

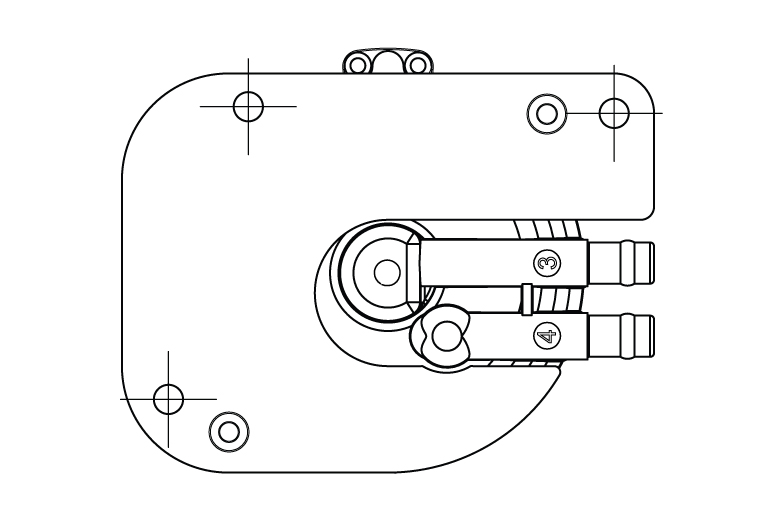

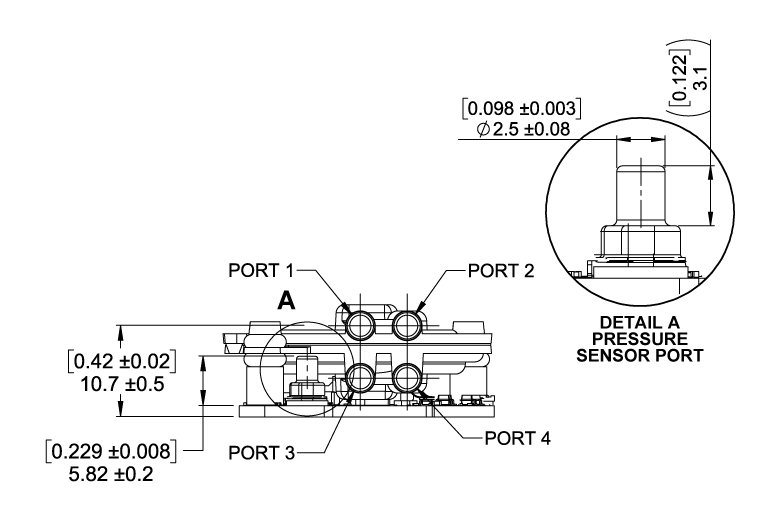

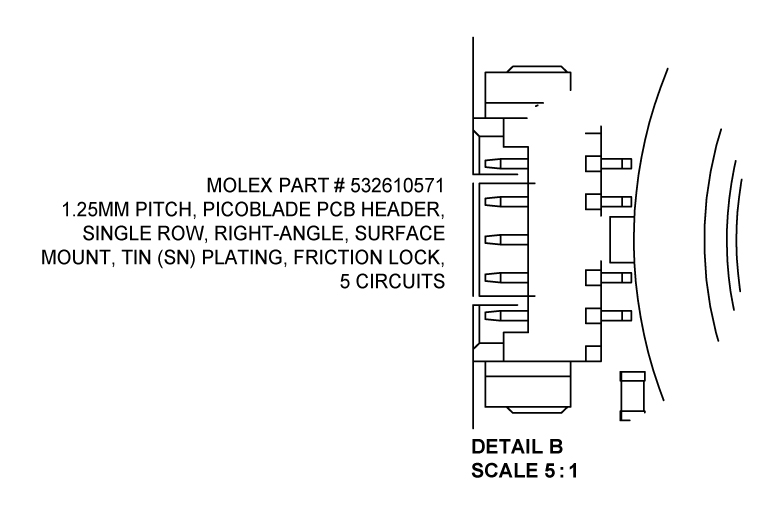

Mounting Details & Port Configuration

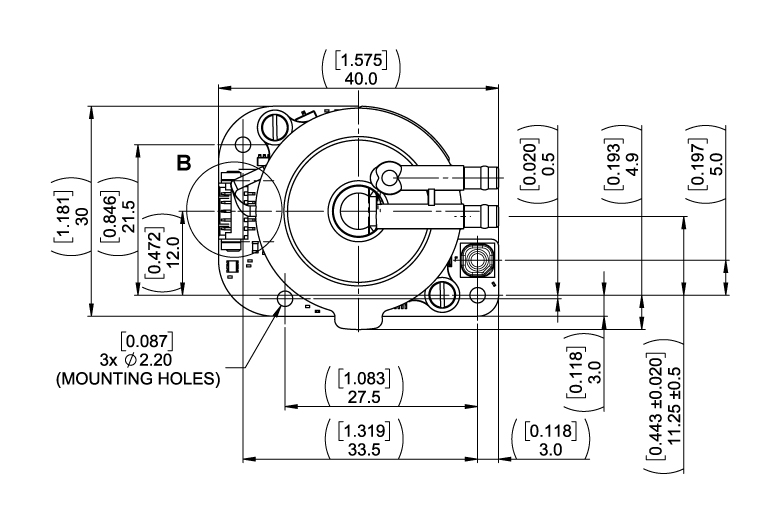

SPM mounted with BL/XP/LT pump.
This image is for reference only. All dimensions are in millimeters [inches].

Get Started

Are you ready to get started? You can be up and running one of our disc pumps in a matter of minutes with the ‘plug and play’ functionality of our Development Kit. We make it easy for you to test this new technology and see it’s advanced functionality.

Make sure to check out our extensive resources and literature – User Manuals, How-To Videos, and Application Notes – to guide you from initial set-up, to using the disc pumps for in-situ applications. Our Frequently Asked Questions covers any further information you may need.

CLICK HERE TO GET YOUR DEVELOPMENT KIT
PIEZOELECTRIC DISC PUMP DEVELOPMENT KIT

Our Disc Pump Development Kit enables the rapid evaluation of one or multiple pumps, together with solenoid valves, making it easy to test system-level prototypes and evaluate the unique features of the piezoelectric disc pump technology.

GET YOUR DEVELOPMENT KIT
What's In The Development Kit?

Watch this video of our Business Development Manager, John Watson, as he unboxes a Disc Pump Development Kit and explains everything that comes with it:

  • 1x Development Kit Motherboard
  • 1x General Purpose Drive PCB mounted on the motherboard, with protective cap
  • 1x pneumatic accessories kit (tubing, filters and connectors)
  • 1x precision orifice (used, for example, to bleed pressure from systems)
  • 1x cable kit for connecting Smart Pump Modules and valves to the kit
  • 1x USB cable for connecting the kit to a PC
  • 1x pump mounting kit (bolts and O-rings)

Note that Disc Pumps and valves must be purchased separately. This enables customers to select the exact model(s) that they wish to test. For help selecting the right model for your application, please speak to a Lee Sales Engineer.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
Pump Series Part Number Configuration Operation Stall Pressure Free Flow Stall Vacuum Request Information
BL Series UBLC5401000A Series Continuous2,3 300 mbar 0.50 L/min 200 mbar Request
UBLC5401200A Series Continuous2,3 270 mbar 0.80 L/min 200 mbar Request
UBLC5400000A Parallel Continuous2,3 170 mbar 0.95 L/min 170 mbar Request
UBLC5400200A Parallel Continuous2,3 160 mbar 1.65 L/min 150 mbar Request
XP Series UXPC5401000A Series Intermittent1,3 400 mbar 0.75 L/min 300 mbar Request
Continuous2,3 310 mbar 0.65 L/min 250 mbar Request
UXPC5401200A Series Intermittent1,3 400 mbar 0.96 L/min 295 mbar Request
Continuous2,3 310 mbar 0.83 L/min 250 mbar Request
UXPC5400000A Parallel Intermittent1,3 250 mbar 1.35 L/min 200 mbar Request
Continuous2,3 190 mbar 1.10 L/min 140 mbar Request
UXPC5400200A Parallel Intermittent1,3 210 mbar 2.00 L/min 180 mbar Request
Continuous2,3 150 mbar 1.70 L/min 120 mbar Request
LT Series ULTC5401100A Series Continuous2,3 270 mbar 0.55 L/min 220 mbar Request
ULTC5400100A Parallel Continuous2,3 150 mbar 1.20 L/min 150 mbar Request
HP Series UHPC5200000A n/a Continuous2,3 600 mbar 0.10 L/min 400 mbar Request
US Series UUSC5101200A Series Intermittent1,3 420 mbar 0.95 L/min n/a Request
Continuous2,3 310 mbar 0.85 L/min n/a Request
1Intermittent operation at 1.4 W drive power (into the pump). With intermittent operation, the mean power should be less than 1 W with a duty cycle period of less than 20 s. Operational life may be shortened when the mean pump drive power exceeds 1 W.
2Performance at 1 W measured after 30 s of continuous operation.
3Performance data presented was collected under normal temperature and pressure and ambient humidity conditions. Performance under other conditions may vary. In particular, note that performance decreases with altitude and may decrease at elevated temperature.

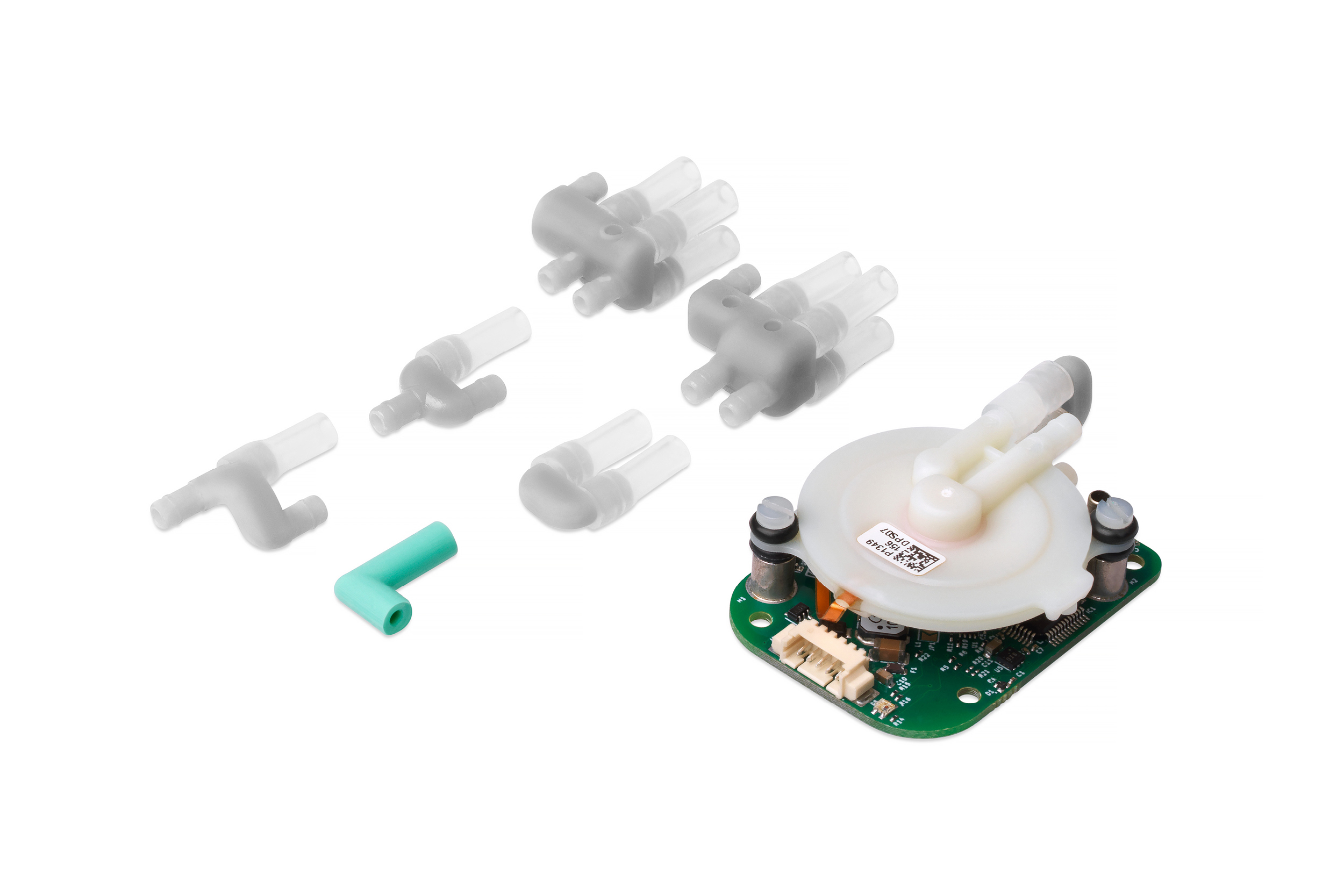

Installation & Accessories

Replacement Parts & Accessories
ITEM PART NUMBER DESCRIPTION
USB Power and Communications Cable UACX0500400E Enables connection between module and host PC, providing power and enabling configuration, control, and data-logging via the Disc Pump Control App
SPM Prototype Pneumatic Adapter Kit UACX0500600H Enables convenient connection between the pump and onboard pressure sensor. Adapters are made via SLA / rapid prototyping and are intended for prototyping and development purposes; they are not suitable for use in end products.
1.2 µm Disc Filter UACX0500750H Low pressure drop filter to protect disc pumps from the ingress of contamination and debris.

CAD Envelopes

Resources

Software & Electronics

Software includes PC-based interface and code snippets for running and controlling the disc pumps. This Electronics Reference Design package contains PCB and firmware reference designs together with supporting technical guides. This provides everything necessary for customers to design their own drive electronics.
